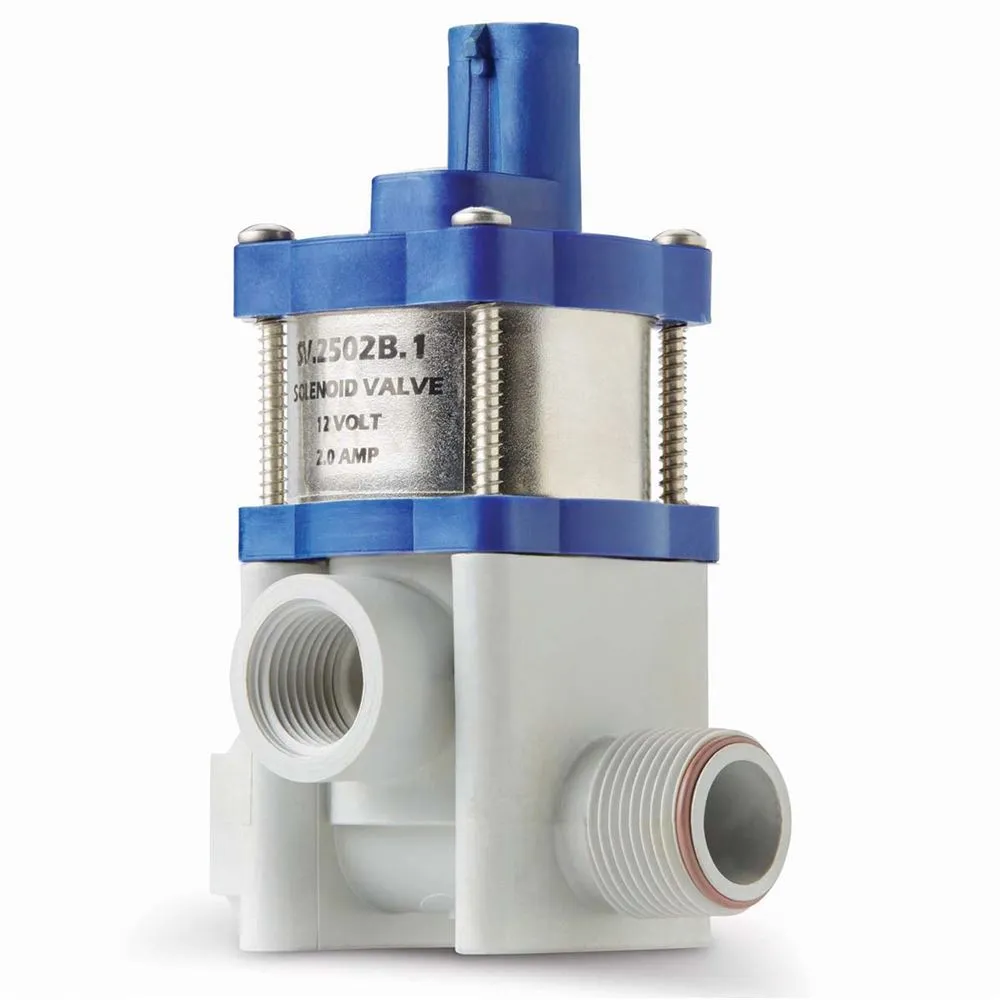

SV.2502B.1.WP Solenoid Single Valve with TIR E-Chip™

Designed for agricultural spraying purposes, this solenoid valve is built with efficient TIR E-Chip™ technology. Consisting of an interface electronic board that is integrated into the power consumption, and valve. Construction elements of this solenoid valve include standard viton seals and 430F stainless steel center that is resistant to harsh chemicals. This sprayer valve has a maximum pressure of 175 PSI, a GPM of 0-8, and a pressure drop of 5 PSI at 8 GPM. There are 3 different NPT measurements on this valve, a female bypass inlet: 3/4 in., a male bypass outlet: 3/4 in., and a female bypass outlet: 1/2 in.

Specifications

• Solenoid Single Valve
• SV.2502B.1.WP
• 12 Volt valve
• TIR E-Chip™
• Reduces voltage and operating temperatures
• Compatible with harsh agricultural chemicals
• NPT female inlet: 3/4 in.
• NPT male bypass outlet: 3/4 in.
• NPT female boom outlet: 1/2 in.
• Construction of central parts: 430F steel
• Excellent for booms and large tractor sprayers
• Coils are encapsulated and waterproof
• Maximum pressure: 175 PSI
• GPM: 0-8
• Pressure drop: 5 PSI at 8 GPM
• Current draw: 2 AMPs
