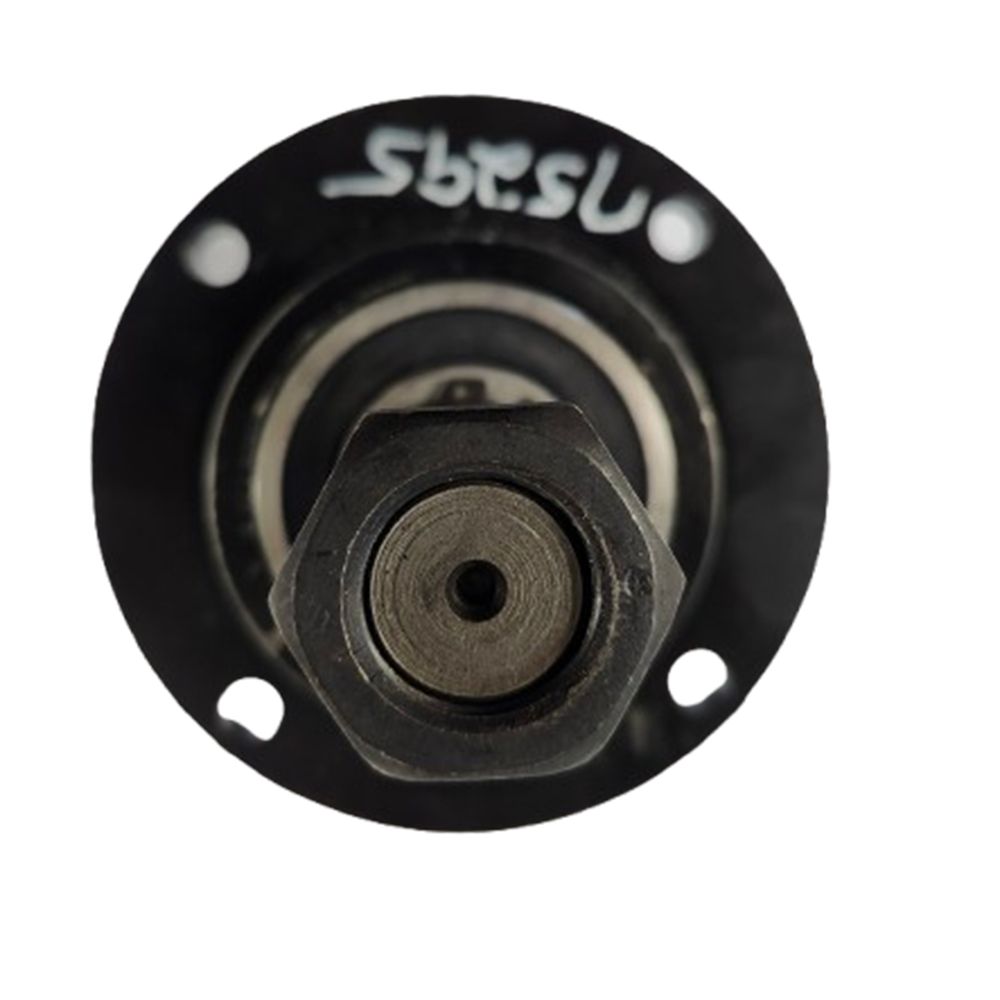

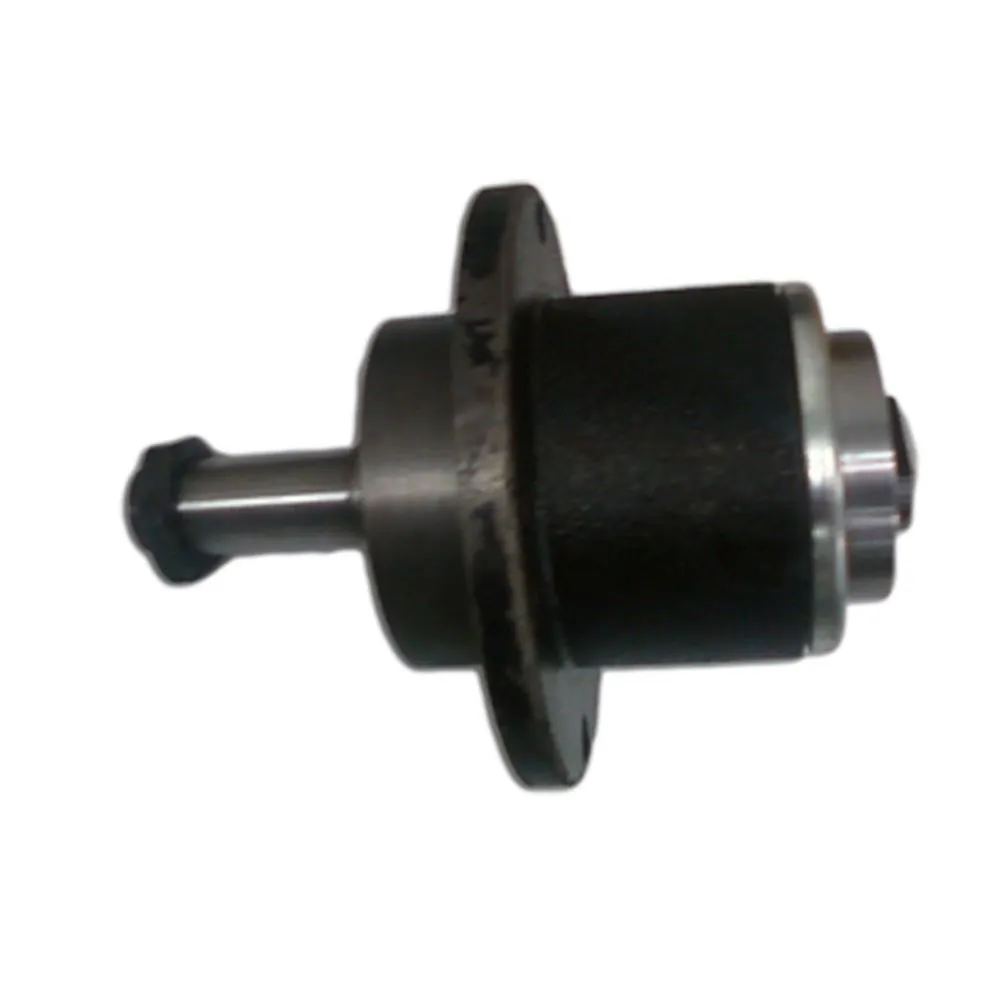

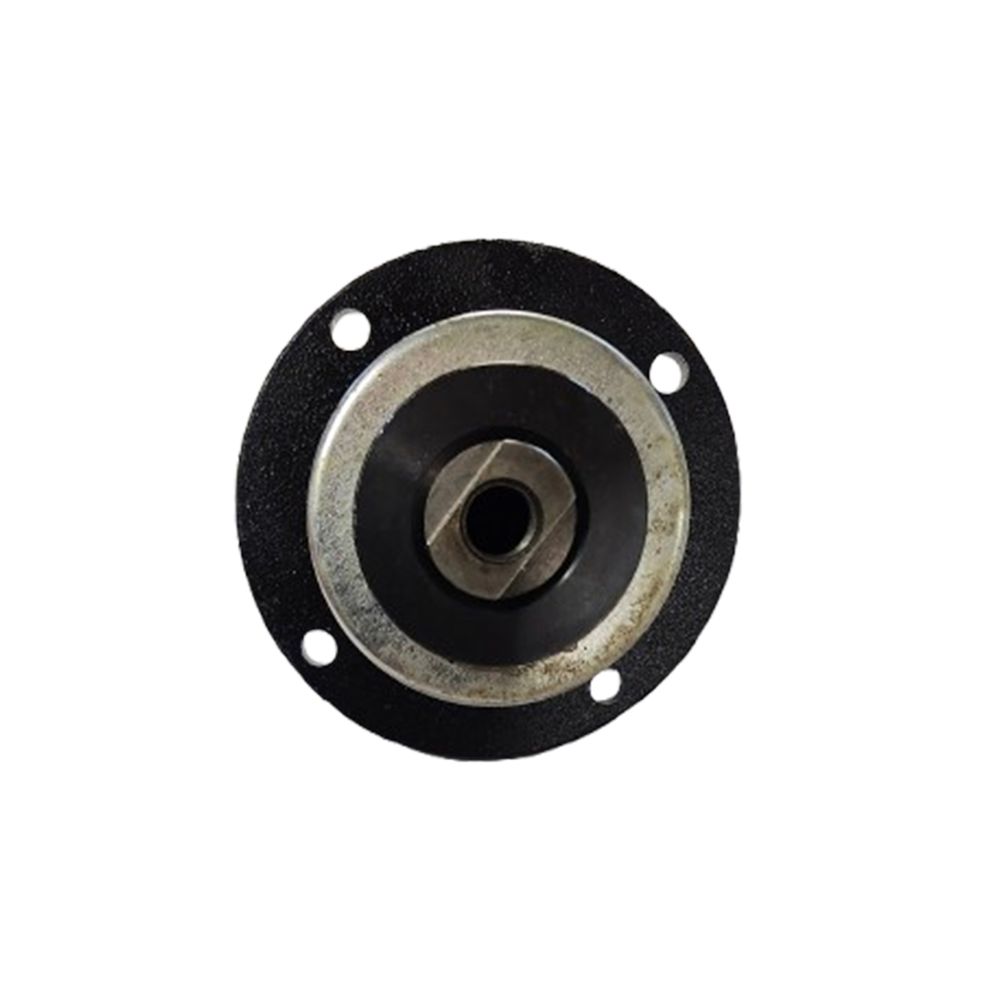

Spindle Assembly For 7' Deluxe Model Finishing Mower

Specifications

• Spindle Assembly For 7' Deluxe Model Finishing Mower
• # 46
• Part number: 020046
• Requires (2) replacement Bearings, ASC # 101578 6306RS - 19 mm Bearing
• If a replacement single pulley is needed, purchase #75293
• If a replacement double pulley is needed, purchase #75292
• Right-hand threads
• The diagonal bolt pattern is 5"
• 7-1/2" tall
• 3-3/16" flange height from bottom
• .985" shaft diameter
