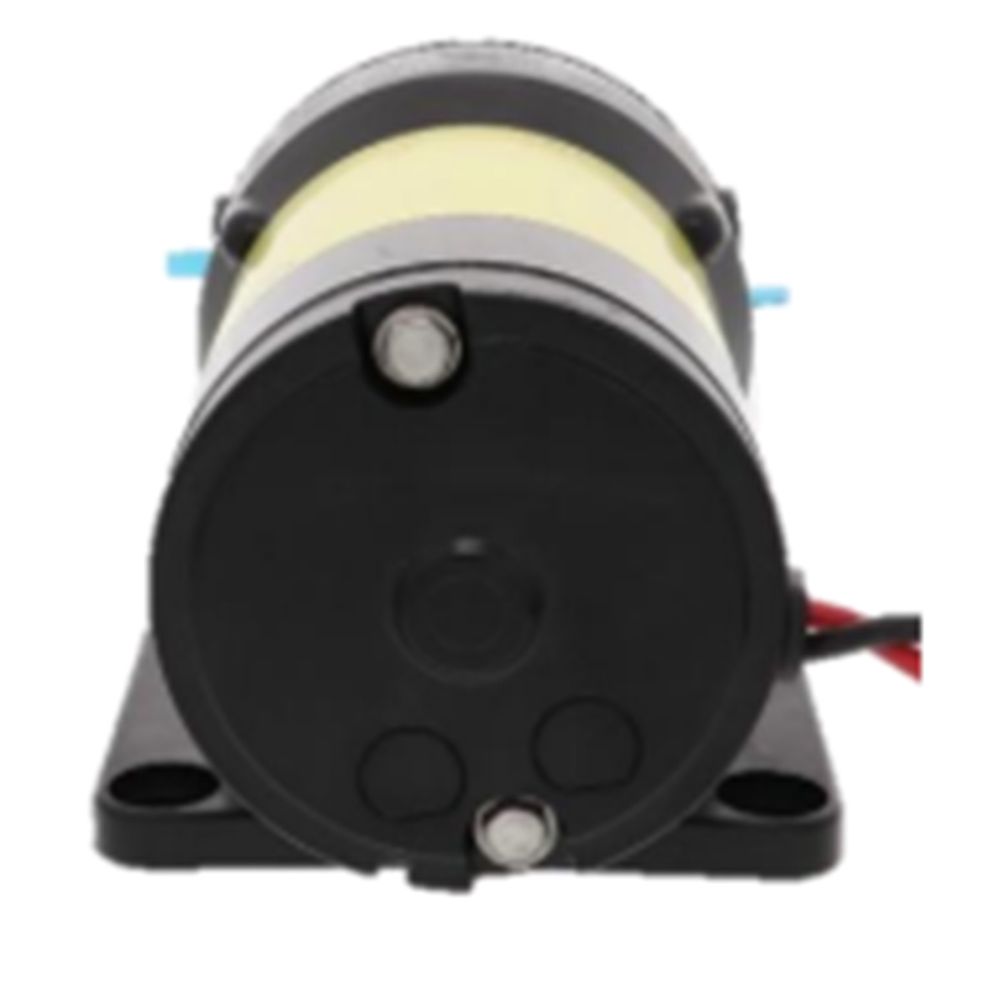

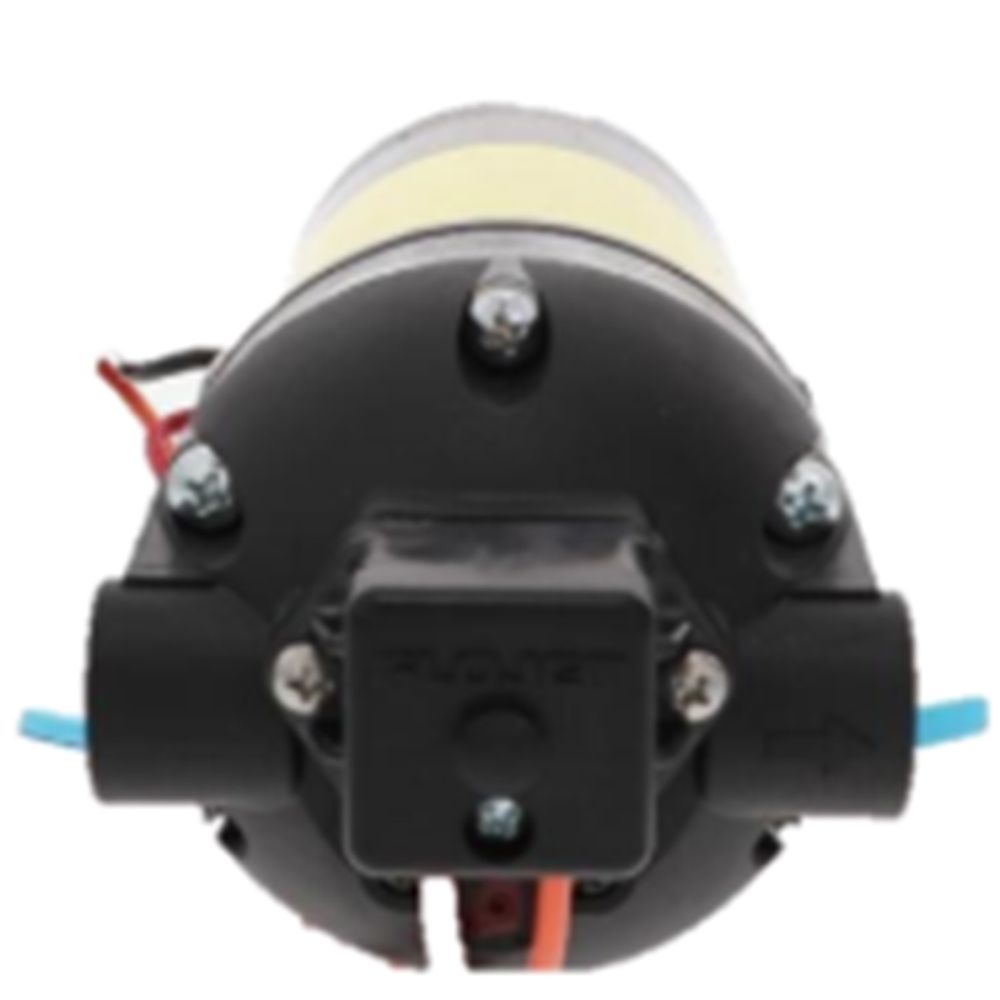

FlowJet Xylem Triplex Series Industrial Diaphragm Pump 12V, 1.6 GPM

Elevate your industrial fluid management with the Flojet T201F-368S-1P Triplex Series Diaphragm Pump, a powerhouse engineered for the grueling demands of heavy-duty spraying and liquid transfer. As the high-performance successor to the legacy Duplex Series, the Triplex line introduces a sophisticated 3-chamber diaphragm architecture. This design overhaul ensures a significantly smoother, more consistent flow, effectively eliminating the jarring pulsations often found in smaller, traditional diaphragm pumps.

• FlowJet Xylem
• Part Number: T2201-368S-1P
• Robust design with a permanent magnet motor
• Long-life co-injection mold diaphragm
• Efficient, quiet
• Self-priming up to 8 ft. (2.4m)
• Runs dry without damage
• Open Flowrate: 2GPM open flow (7.6 LPM)
• Pressure switch cut-off: 60 PSI (4.1 BAR)
• Max Opening Pressure: 60 PSI (4.1 BAR)
• Max Inlet Pressure: 30 PSI (2.2 BAR)
• Internal Bypass: Yes
• Fluid Temperature Range: 40°F - 140°F (4°C - 60°C)
• Self-Priming Capability: Up to 8 ft. (2.4m) dry prime
• Run-dry Capable: Yes
• Nominal Voltage: 12 VAC
• Voltage Range: 9 VDC -13.6 VDC
• Max Current Draw: 7.5 Amps @ 60 PSI (4.1 BAR)
• Fuse Size: 10 Amps (required)
• Duty Cycle: Intermittent (see heat-raise chart)
• Leads: 12 in. (305mm), 14 AWG
• Wire Connection: Stripped wire
• 3-chamber Diaphragm
• 3/8 in. NPTF ports
• TENV permanent magnet motor
• Noise-dampering baseline
• Thermal motor protection (TCO)
