3-WAY SOLENOID SPRAYER CONTROL VALVE

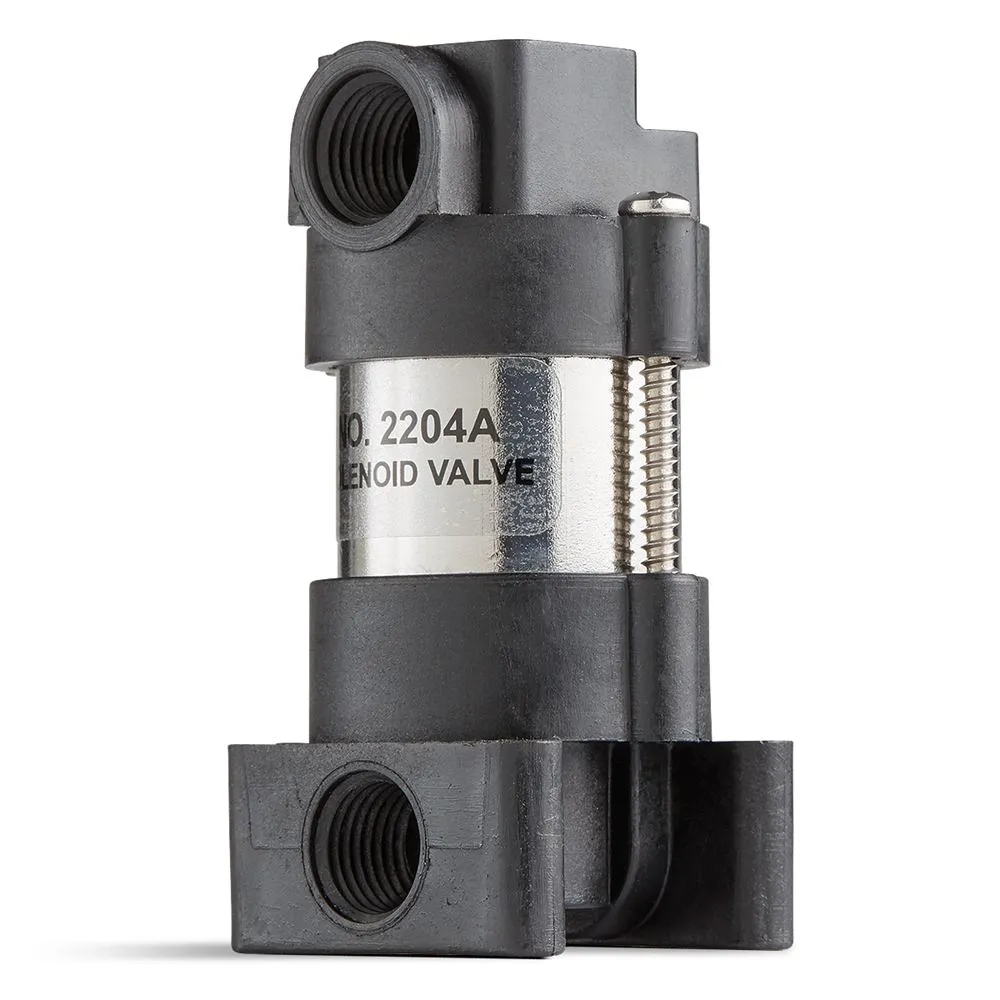

3-Way Solenoid Valve, The 2204A is used for foam and flow direction. The valve is a 3-Way 12-Volt DC solenoid valve with 1/4" male spade terminals. The valve has a 1/4" NPT female inlet and two 1/4" NPT female outlets. The valve housing is made of glass filled nylon and the wetted metal parts of 304 and 430 stainless steel. The Viton seals and "O" rings are standard. The coil is totally epoxy encapsulated. The valve is ideal for foam markers to control both air and liquids. The valve has a .105 Diameter Orifice, .22 CV Rating, 1/2 GPM, 55 PSI, 12-Volt DC, rated at .85 Amp.

• 1/4" NPT female inlet and two 1/4" NPT female outlets
• 40 PSI, 1/2 GPM
• 12-Volt DC, .85 amp
• 105 diameter orifice
