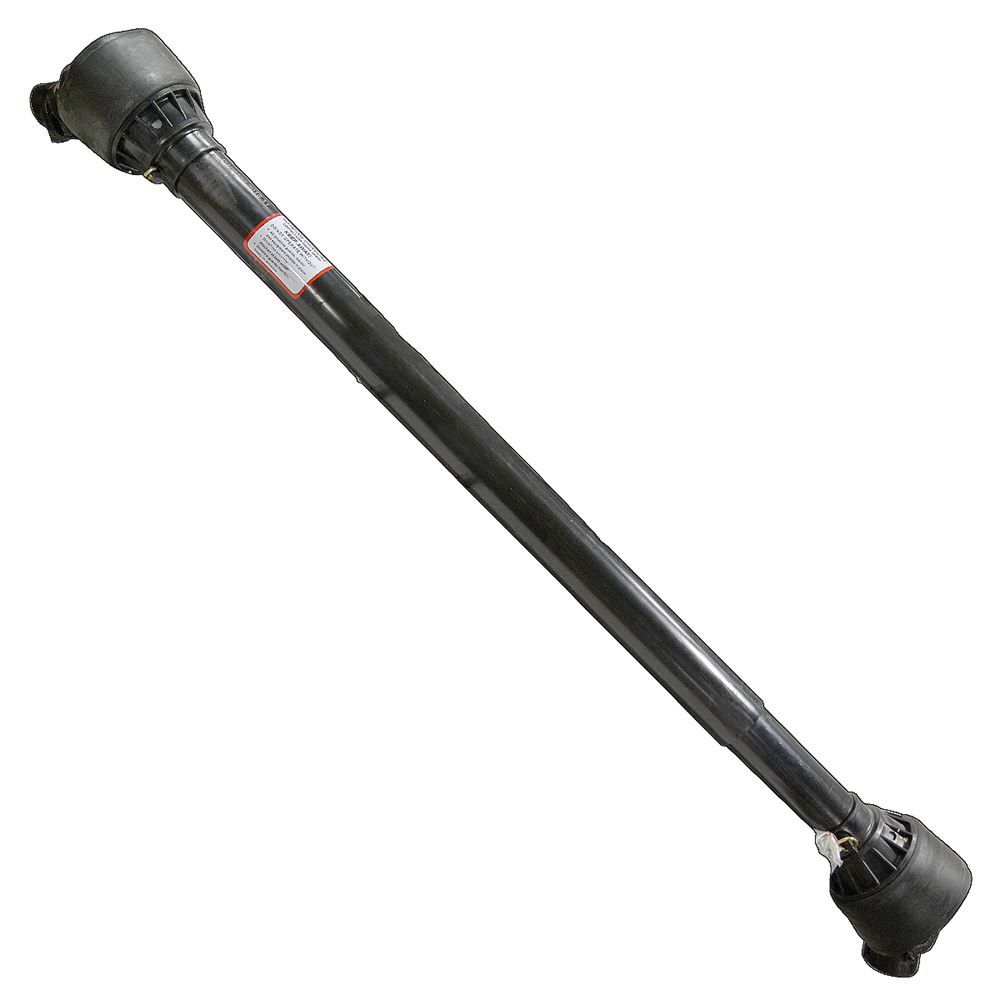

PTO Shaft, Series 4, 51.5 in. 1-3/8 in. - 6 Spline x 1-1/4 in. Round

#109132

$99.99 EA

This series 4 PTO shaft assembly contains dual female ended implements measuring 1-3/8 in. x 6-spline and 1-1/4 in. x one round. This PTO shaft can retract or extend to fit different applications.

-
+
Availability: In Stock -

This series 4 PTO shaft operates in a rotational motion, with a PTO horsepower of 35 at 540 RPM and a horsepower of 54 at 1000 RPM. There are a tractor end and an implement end that both have female ends measuring 1-3/8 in. 6-spline, and 1-1/4 in. round. The tractor end has 6 splines, and the implement end is smooth. This PTO shaft has a retracted end measuring 51.5 inches and an extended end measuring 68.9 inches. As an essential safety precaution, be sure to shield any rotating parts and do not wear loose accessories, which could become entangled and pulled into the machine.

Specifications
  • PTO Shaft
  • Series 4
  • Extended length: 68.9 in.
  • 3/8 in. round shear pinhole size
  • Retracted length: 51.5 in.
  • Has a long bell shield on implement end

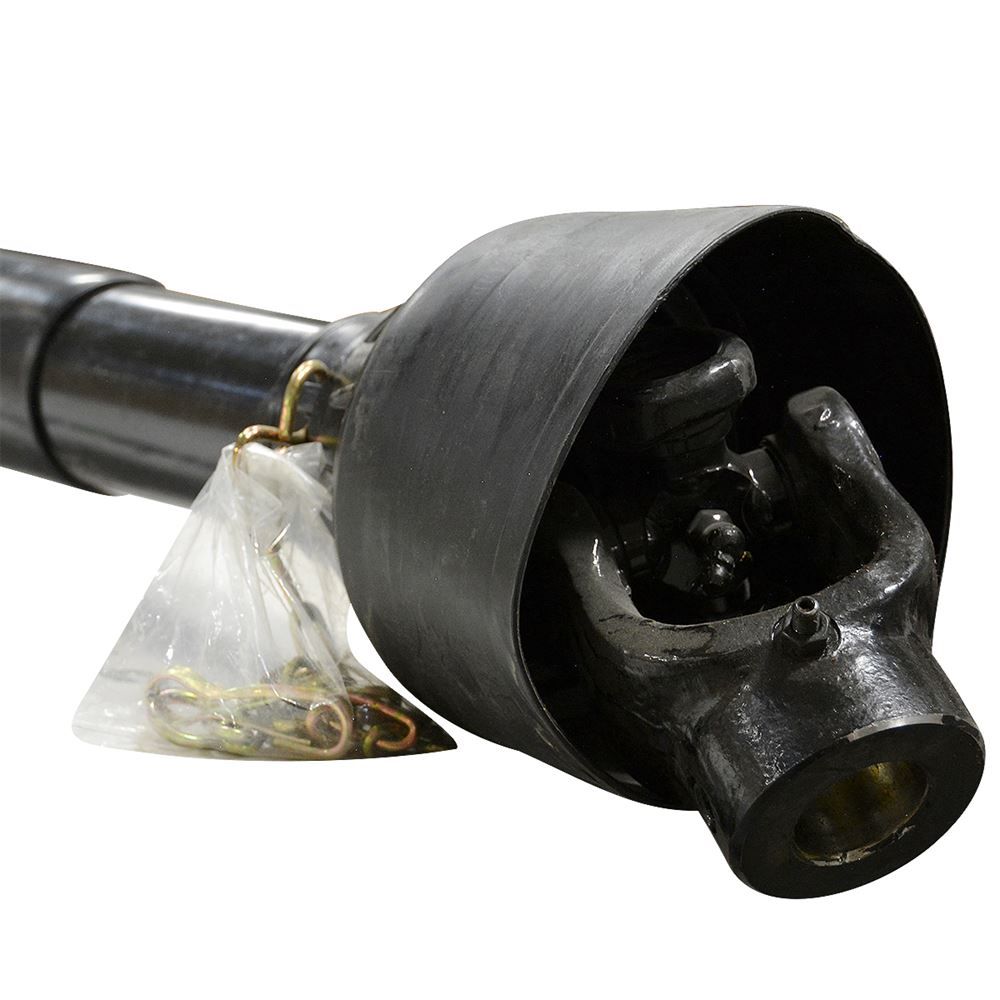

  • Metal pull collar yolk on Tractor end
  • Tractor End: 1-3/8 in. 6 spline, female
  • Implement end: 1-1/4 in. female smooth end
  • 35 HP at 540 RPM
  • 54 HP at 1000 RPM
  • Series 4 cross kit compatibility: 27 mm diameter x 74.6 mm width
  • Shield all rotating parts for safety
