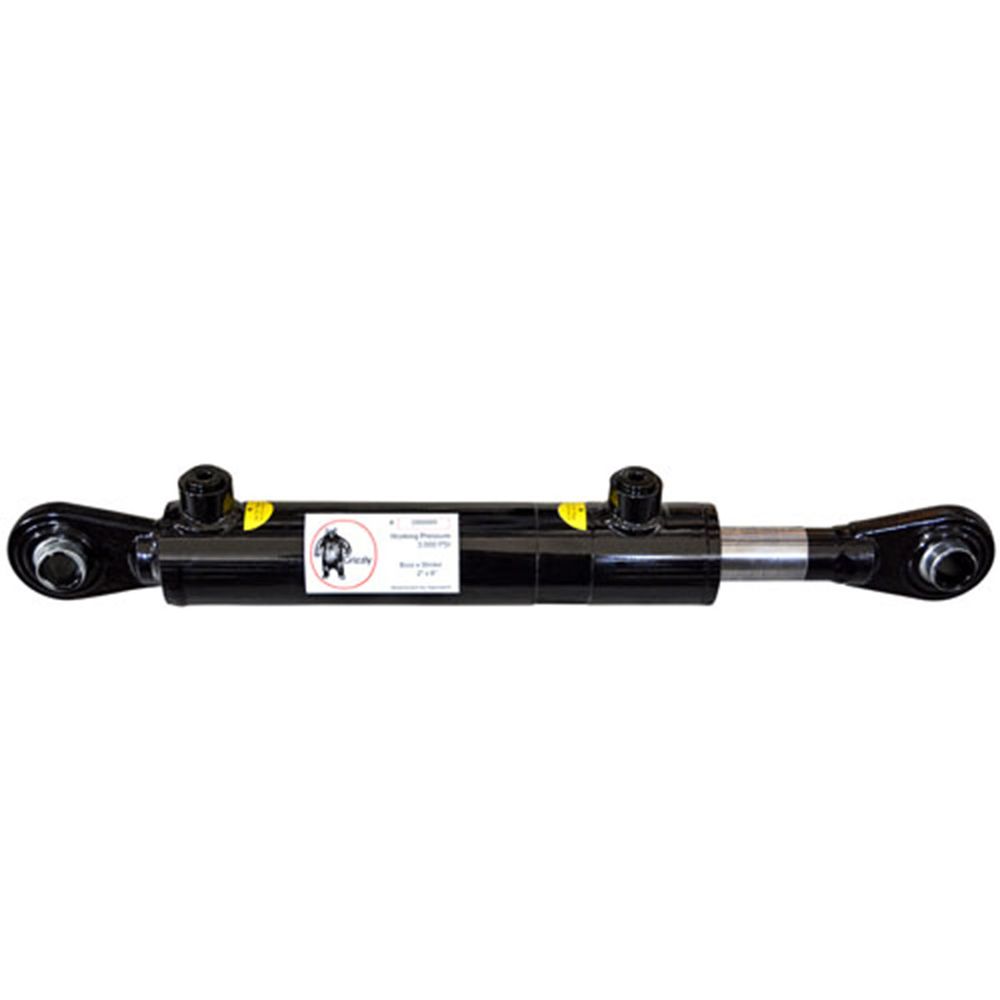

Top Link Cylinder, Cat 1, 2" x 8"

Hydraulic Top Link Cat 1, 2" x 8"

Item #90599A
Write a Review
Easily attach this category 1 top link to a 3-point implement on your tractor. It features a range of motion from 20 inches when retracted to 28 inches when extended. The rod is chrome plated to ensure durability when being used for agricultural or maintenance use.
100% Satisfaction Guaranteed
Product Overview

Constructed to perform for excellent longevity, this hydraulic top link is a useful agricultural tool that connects to 3-point equipment. It is a category 1 cylinder, compatible with a horsepower range of 25 to 55, and can operate at 3,000 PSI. The extended length of this tractor top link measures 28 inches and the retracted length measures 20 inches. The bore is 2 inches, stroke is 8 inches, and the pin measures 3/4 inch. The rod features chrome plated construction, which allows this top link to remain in good condition after years of use.

Specifications

  • Top Link Cylinder
  • Model number: W30200810TLDDI
  • Category 1
  • Working PSI: 3,000
  • Retracted length: 20 in.
  • Extended length: 28 in.
  • Bore: 2 in.
  • Stroke: 8 in.
  • Pin: 3/4 in.
  • Port Hole Size - 2 Holes 3/4" - 16 ORB (SAE-8)
  • Rod Diameter - 1.25"
  • Rod construction: Chrome plated
  • Push lbs.: 9,425
  • Pull lbs.: 6,443
  • For 3-point hitch
  • ASC 18670 Converts from 3/4" - 16 ORB Male to 1/2" FPT
  • For the seal kit use ASC # 106524A
