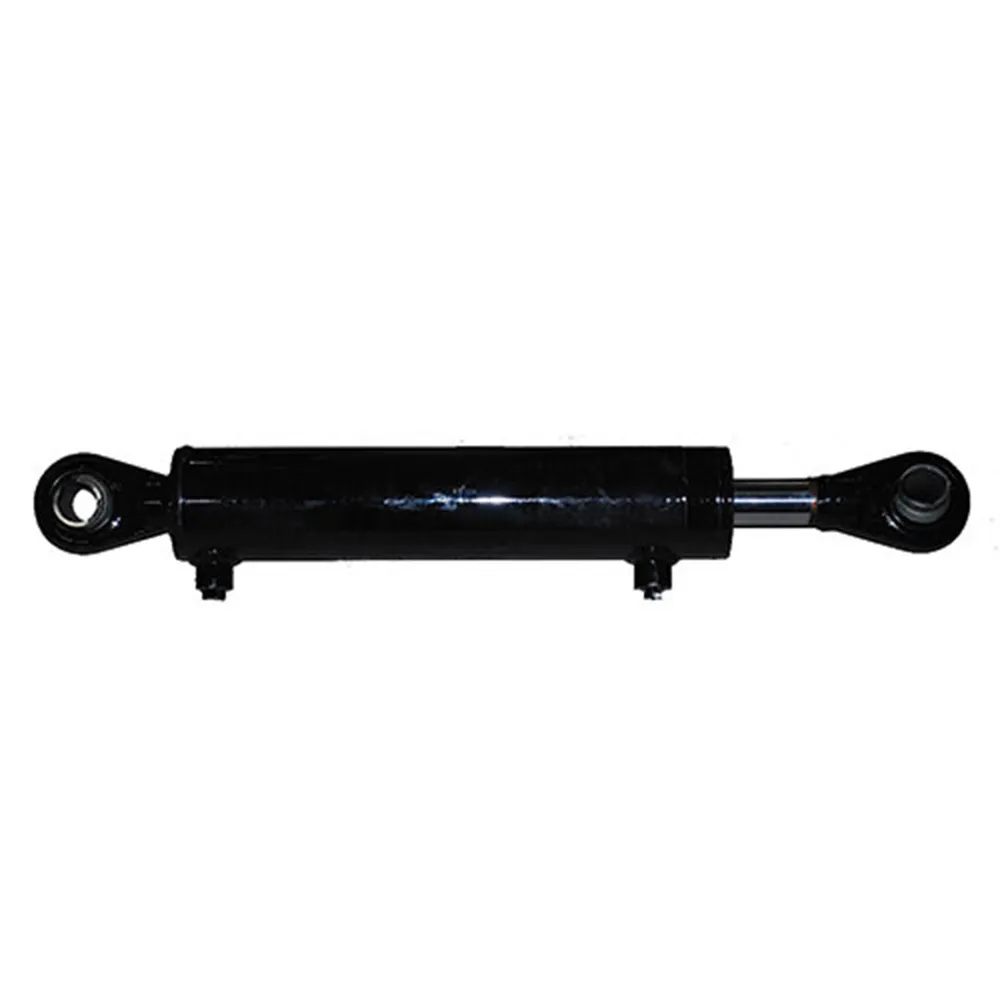

Top Link Cylinder 2-1/2" Bore 10" Stroke

Hydraulic Top Link 2-1/2" Bore 10" Stroke

Item #84745A
The average rating for this product is 5 out of 5 stars
1 review
Easily attach this category 2 top link to a 3-point implement on your tractor. It features a range of motion from 21-1/2 inches when retracted to 31-1/2 inches when extended. The rod is chrome plated to ensure durability when being used for agricultural or maintenance use.
100% Satisfaction Guaranteed
Product Overview

Constructed to perform for excellent longevity, this hydraulic top link is a useful agricultural tool that connects to 3-point equipment. It is a category 2 cylinder, compatible with a horsepower range of 45 to 95, and can operate at 3,000 PSI. The extended length of this tractor top link measures 31-1/2 inches and the retracted length measures 21-1/2 inches. The bore is 2-1/2 inches, stroke is 10 inches, and the pin measures 1 inch. The rod features chrome plated construction, which allows this top link to remain in good condition after years of use.

Specifications

  • Top Link Cylinder
  • Model number: W30251010TL
  • Category 2
  • Working PSI: 3,000
  • Retracted length: 21-1/2 in.
  • Extended length: 31-1/2 in.
  • Bore: 2-1/2 in.
  • Rod: 1-1/4 in.
  • Port: (2) 3/8 NPT
  • Stroke: 10 in.
  • Pin: 1 in.
  • Push lbs.: 14,726
  • Pull lbs.: 11,744
  • Rod construction: Chrome plated
  • For 3-point hitch
  • For the seal kit use ASC # 106525A
