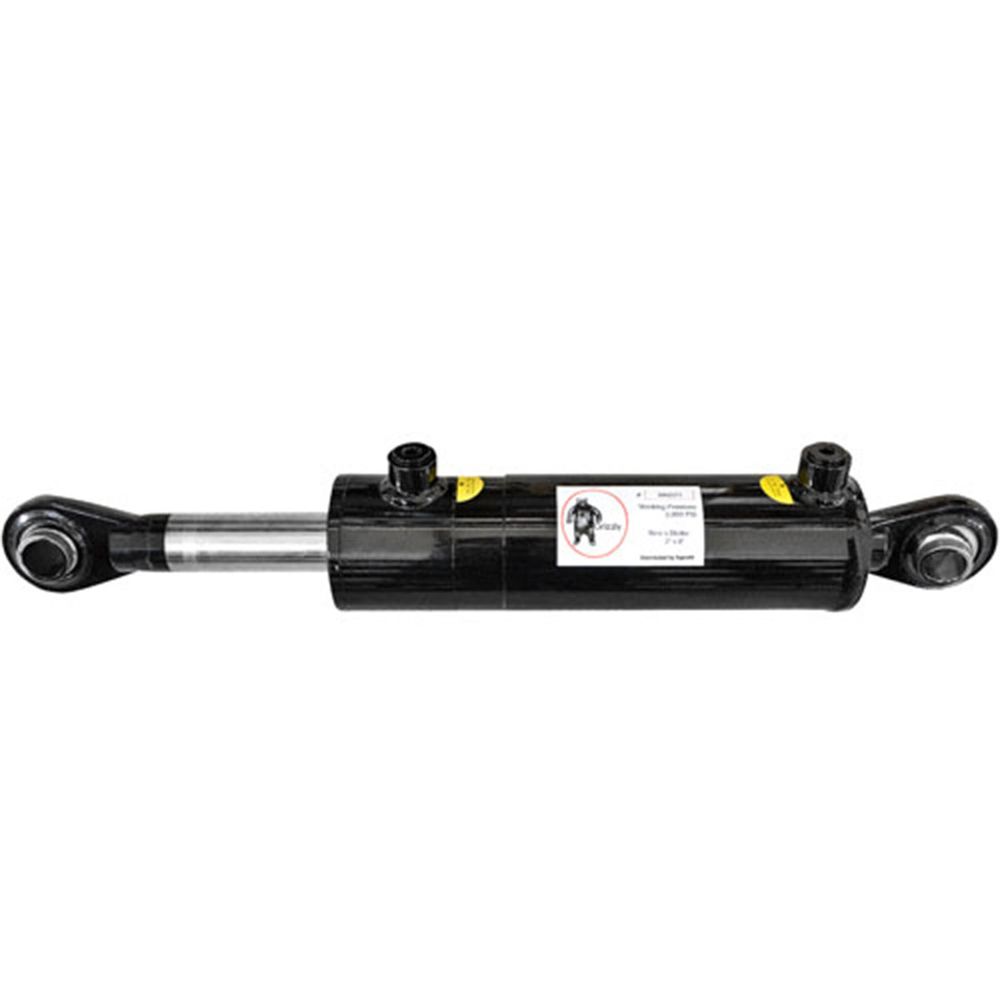

Hydraulic Top Link, Cat 2, 3" x 8", 22" Closed

Hydraulic Top Link, Cat 2, 3" x 8", 22" Closed

Item #90571A
Write a Review
Easily attach this category 2 top link to a 3-point implement on your tractor. It features a range of motion from 22 inches when retracted to 30 inches when extended. The rod is chrome plated to ensure durability when being used for agricultural or maintenance use.
100% Satisfaction Guaranteed
Product Overview

Constructed to perform for excellent longevity, this hydraulic top link is a useful agricultural tool that connects to 3-point equipment. It is a category 2 cylinder, compatible with a horsepower range of 45 to 95, and can operate at 3,000 PSI. The extended length of this tractor top link measures 30 inches and the retracted length measures 22 inches. The bore is 3 inches, stroke is 8 inches, and the pin measures 1 inch. The rod features chrome plated construction, which allows this top link to remain in good condition after years of use.

Specifications

  • Top Link Cylinder
  • Model number: W30300812TLDDI
  • Category 2
  • Working PSI: 3,000
  • Retracted length: 22 in.
  • Extended length: 30 in.
  • Bore: 3 in.
  • Rod: 1-1/2 in.
  • Port: (2) 3/4-16 ORB (SAE#8)
  • Stroke: 8 in.
  • Pin: 1 in.
  • Rod construction: Chrome plated
  • Push lbs.: 21,206
  • Pull lbs.: 15,904
  • For 3-point hitch
  • For the seal kit use ASC # 106526A
  • Use 18648 to adapt to 3/8" FeNPT for a 90 degree fitting use 18652
  • Use 18649 to adapt to 1/2" FeNPT for a 90 degree fitting use 18653
