Top Link End Cat 2 Thread RH Swivel End

Rotating the bolt can either tighten (raise) or loosen (lower) allowing as much as about 30% upward. Adjust the top link on level ground so that the back of the rotary cutter is 1-2" higher than the front. This will allow the cut grass to exit and you won't have the back of the mower or implement scraping on the ground and a lot of weight on the wheel. When mowing on uneven surfaces something has to give as you cross over highs and low areas so it does not put a large amount of stress on your mower.

• Right hand swivel end
• Category 2
• Diameter of threads: 1-1/8"
• Length - eye to end of thread: 8"
• Diameter of pin hole: 1"
• Material: mild steel
• Finish: trivalent white zinc

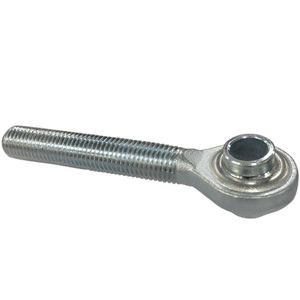

• Left hand side use ASC # 106057 - Top Link End Cat 2 Thread LH Swivel End
