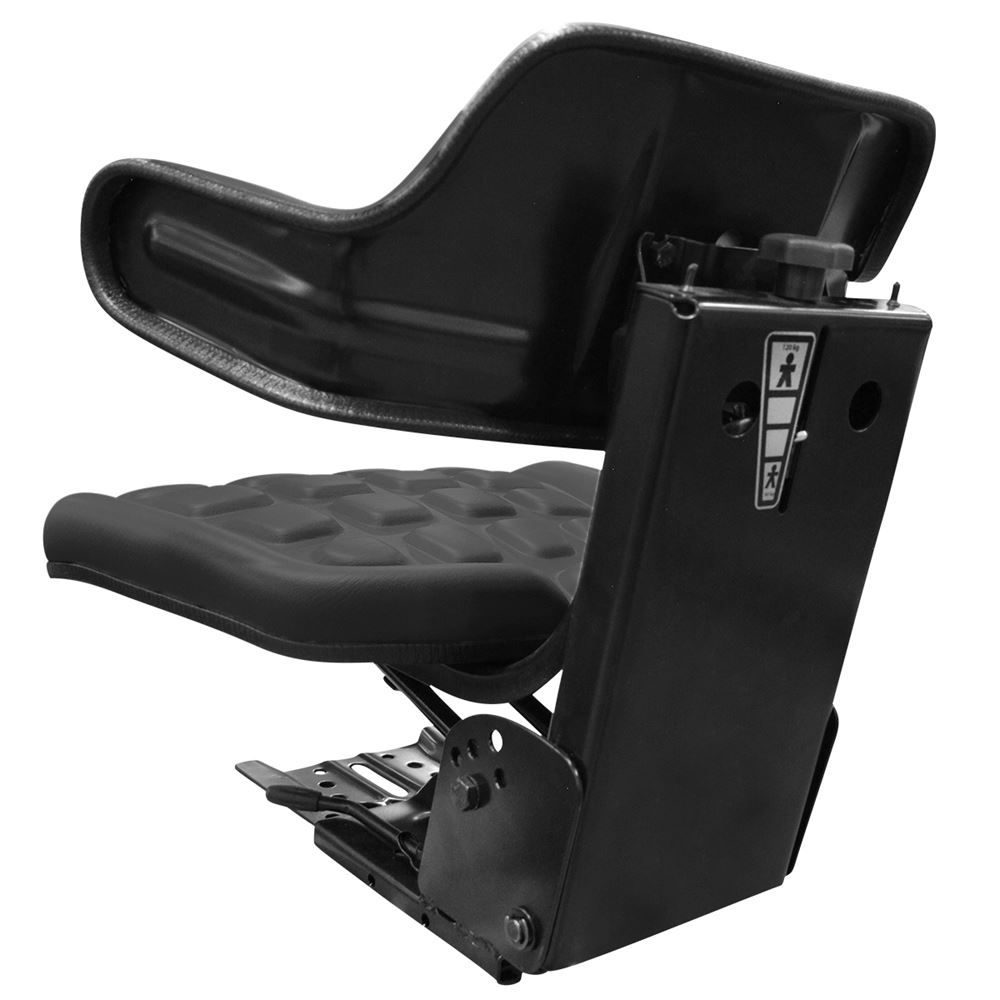

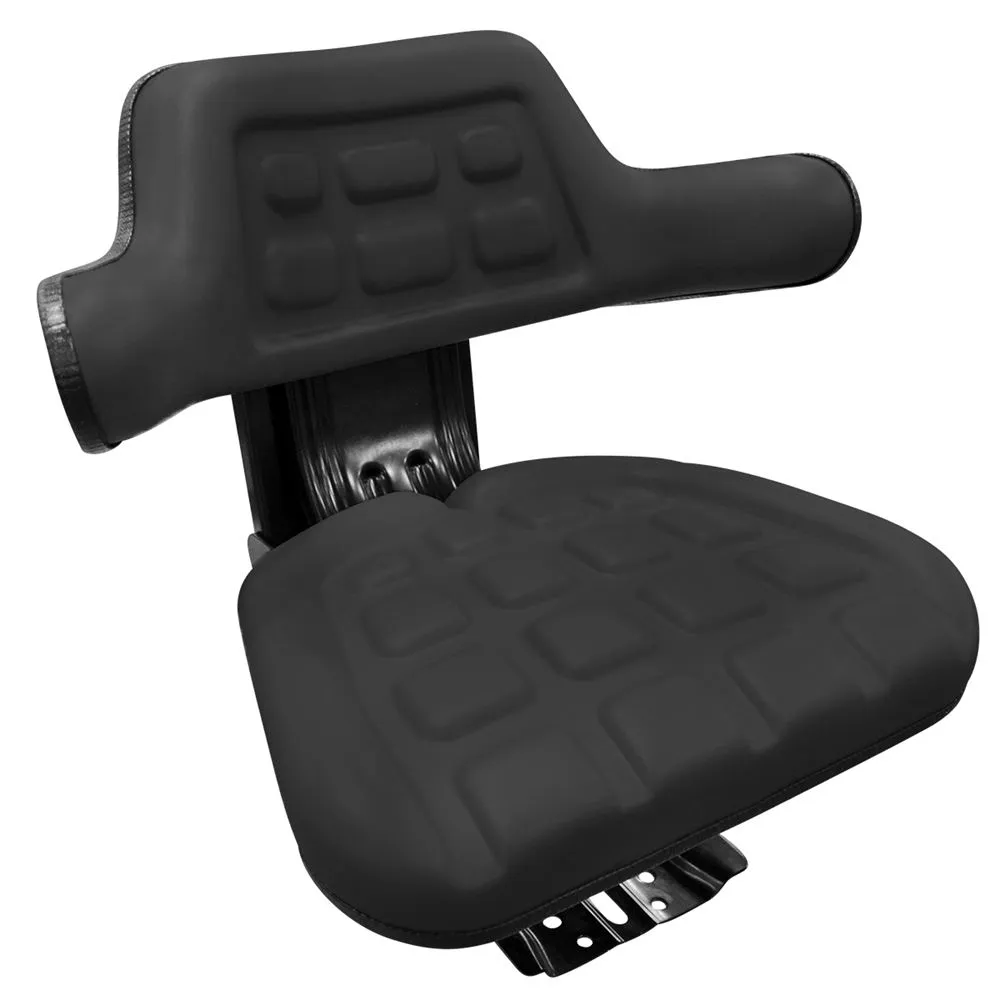

Tractor Seat Black with Slide & Suspension

Universal Black Tractor Seat, This universal tractor seat has a slide suspension, a blue polyurethane seat and back with molded armrests. The overall dimensions of the seat are 19 in. Length (front to back) x 20 in. Width x 20 in. Height (bottom of mounting plate to the top of the seat back). The bolt hole pattern across the center to center is 3-3/4 in. down it is 4-3/8 in. with three (3) bolts down and across. This tractor seat does not come from the original equipment manufacturer.

Specifications

• Universal Black Tractor Seat with Slide
• Part Number: 12615
• Polyurethane
• Tractor seats are not from original equipment manufacturers
• The bolt hole pattern across center to center is 3-3/4 in. down it is 4-3/8 in. with three (3) bolts down and across.
• Length: 19 in. (front to back)
• Width: 20 in.
• Height: 20 in., (bottom of mounting plate to top of seat back)

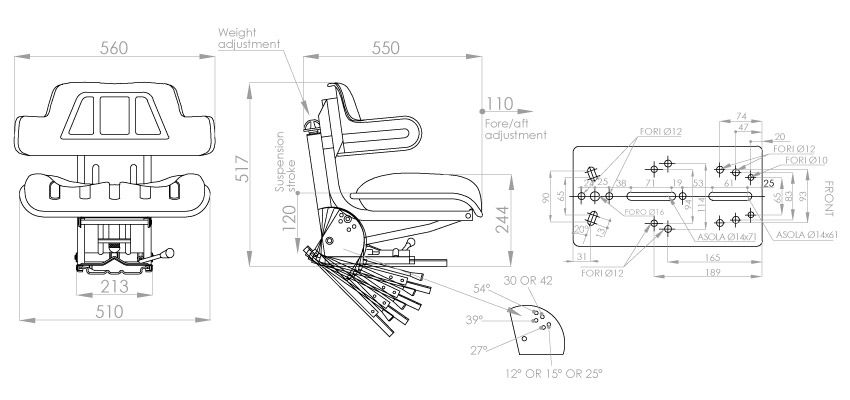

Diagram
