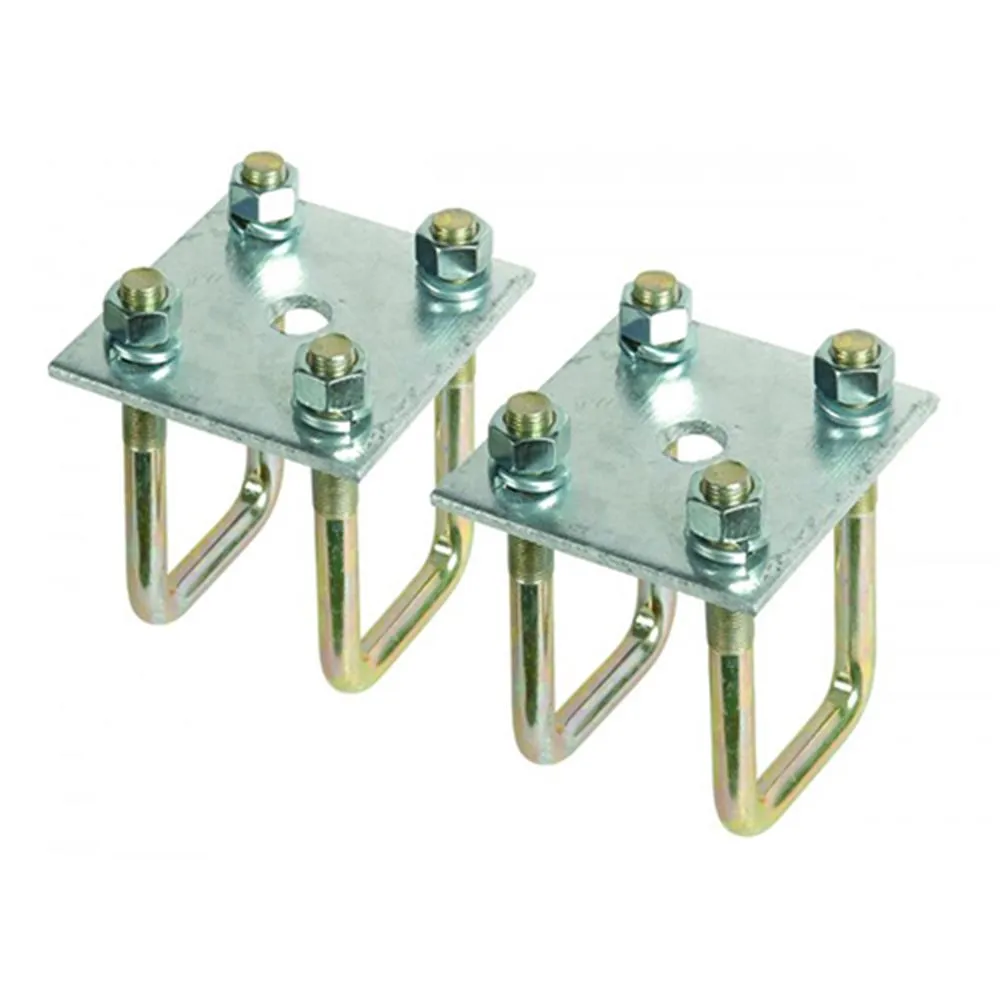

U-Bolt Kit for 2 In. Square Axle

Secure this U-bolt kit to axle underneath trailers or vehicles that need a leaf spring attachment. This kit contains a variety of parts needed to fasten the leaf spring. There are two galvanized tie plates, four U-bolts, and eight nuts with lock washers. The tie plates are square with four holes, one near each corner. The end of each U-bolt is inserted through the holes and secured by a nut and lock washer. These trailer U-bolts and hardware parts are all zinc plated. This kit fits over axles that measure up to 2 inches in diameter.

Specifications

• U-Bolt Kit
• 2 Galvanized tie plates
• 4 U-bolts, zinc plated
• Bolt length: 4-1/2 in.
• Bolt diameter: 1/2 in.
• 8 lock nuts and lock washers, zinc plated
• Fits a 2 in. square axle
• For replacement U Bolt, use #36850
• For mounting leaf springs to axle
