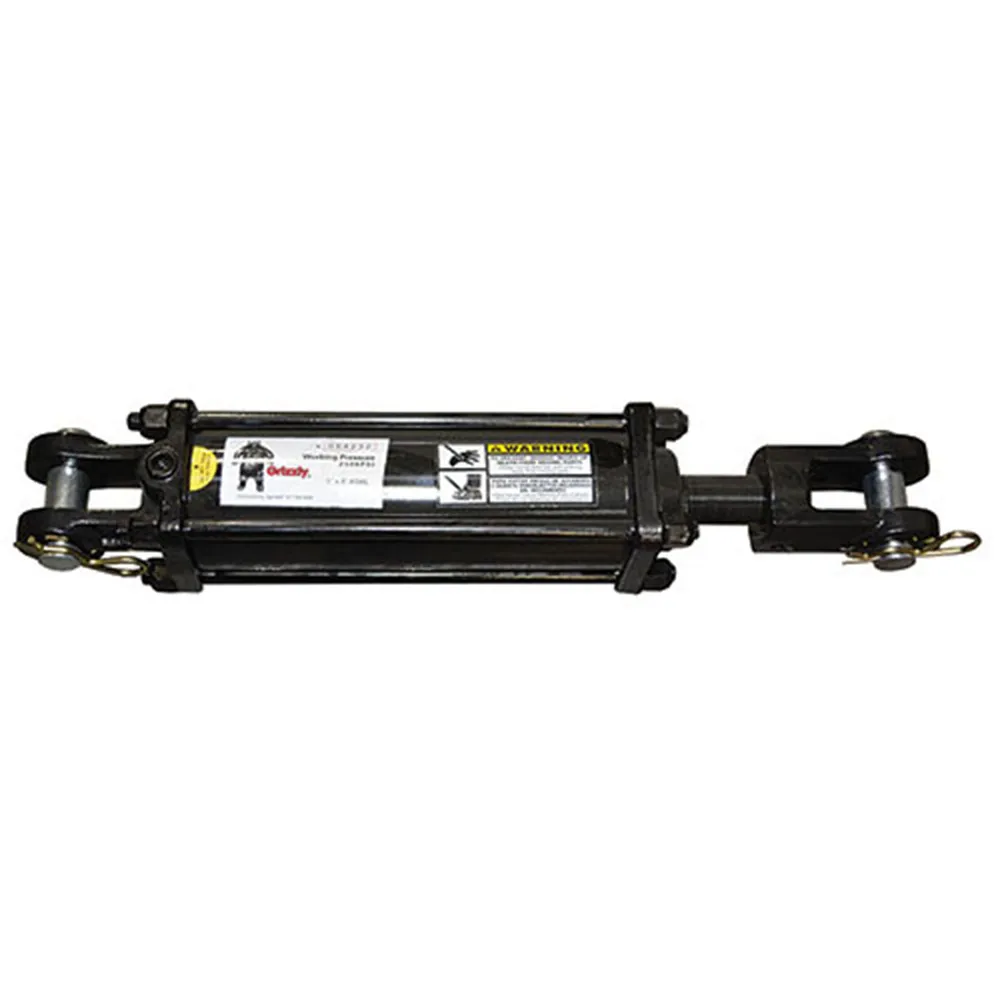

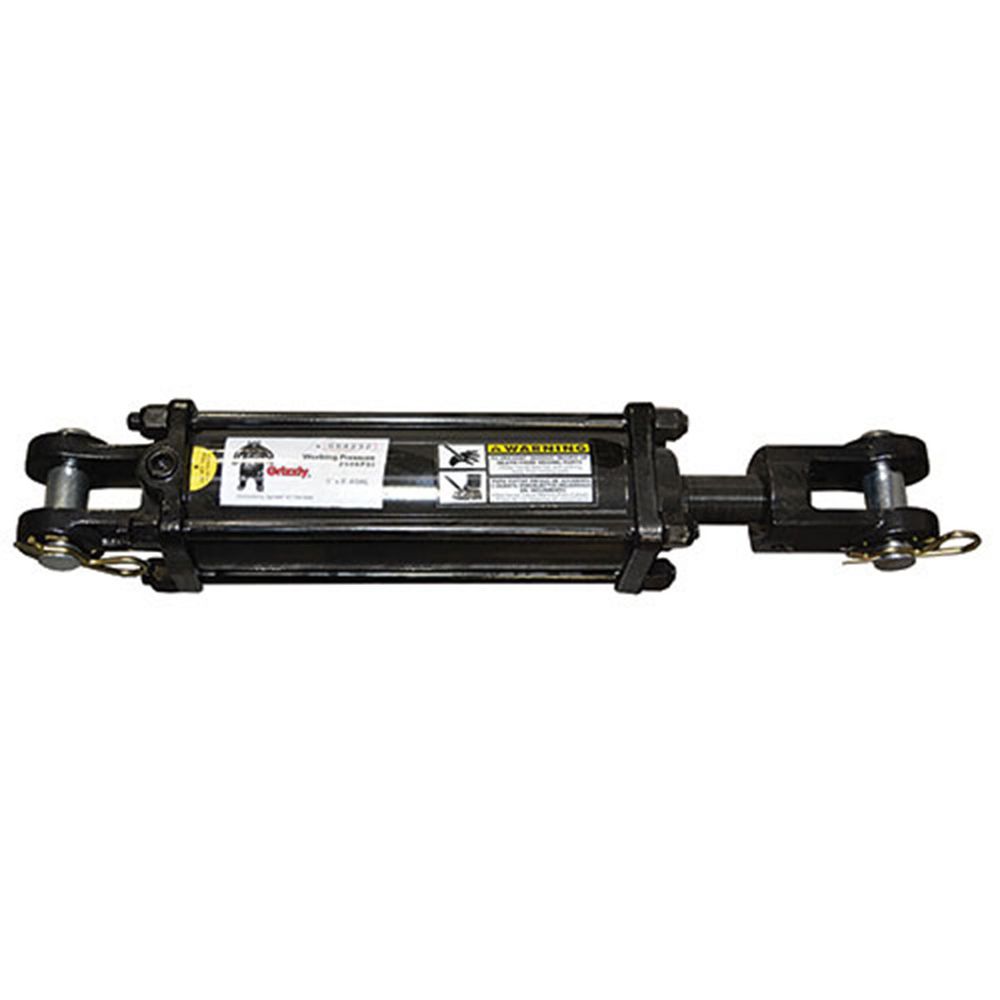

Grizzly® Hydraulic Cylinder 2-1/2 x 12

Grizzly® Hydraulic Cylinder 2-1/2 x 12

Item #87070A
Write a Review
This Grizzly® hydraulic cylinder has a 2-1/2 in. bore and a 12 in. stroke. The retracted length is 22-1/4 in. and the rod diameter measures 1-1/8 in. Use this hydraulic cylinder for a working pressure of 2500 PSI.
100% Satisfaction Guaranteed
Product Overview

Grizzly® hydraulic cylinders are constructed of high strength steel and include tie rods to prevent high pressure failure. This cylinder features a 2-1/2" inch bore with an 8" inch stroke and has a 1" inch pin.

Specifications:

  • Grizzly® Brand
  • Bore: 2-1/2"
  • Stroke: 12"
  • Rod Diameter: 1-1/8"
  • Retracted Length: 22-1/4"
  • Extended Length: 34-1/4"
  • Pin Diameter: 1"
  • Port Size: 3/8" NPTF
  • PSI: 2500
  • Push lbs.: 12,272
  • Pull lbs.: 9,787
  • Recommended operating temperature range: -30 to 105°C (-22 to 221°F)
  • For the seal kit use ASC # 117380

We carry plenty of hydraulic cylinders and other repair kits, clevis rods, hydraulic parts and pieces.
