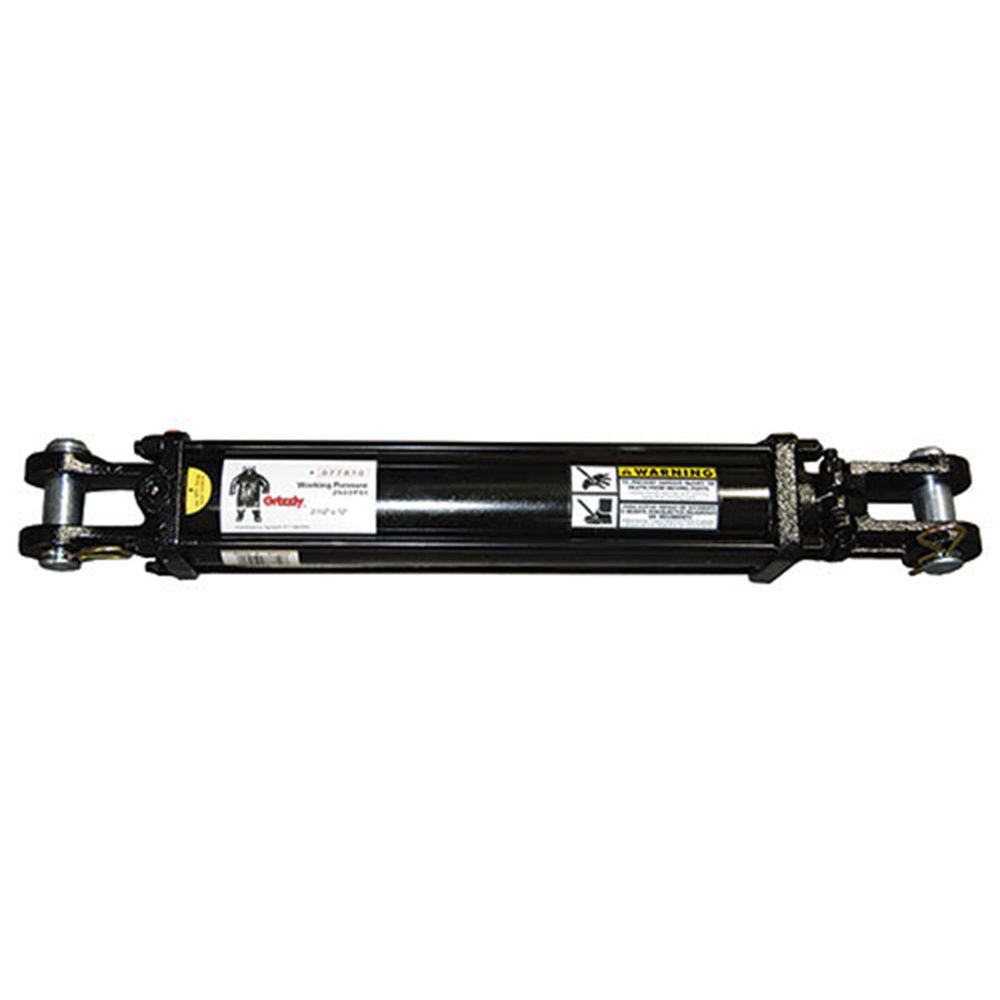

Grizzly® Hydraulic Cylinder 2 x 24

Grizzly® Hydraulic Cylinder 2 x 24

Item #87064A
Write a Review
Ideal for agricultural applications, this Grizzly® hydraulic cylinder has a 2 in. bore and a 24 in. stroke. The retracted length is 34-1/4 in. and the rod diameter measures 1-1/8 in. Use this hydraulic cylinder for a working pressure of 2500 PSI.
100% Satisfaction Guaranteed
Product Overview

This Grizzly® hydraulic cylinder has a 2" inch bore and a 24" stroke with a retraced length of 34-1/4 inches and an extended length of 58-1/4 inches. Grizzly cylinders are constructed from high strength steel and zinc plated for the tough conditions on the job or farm.

Specifications:

  • Grizzly® Brand
  • Bore: 2"
  • Stroke: 24"
  • Rod Diameter: 1-1/8"
  • Retracted Length: 34-1/4"
  • Extended Length: 58-1/4"
  • Pin Diameter: 1"
  • Port Size: 3/8" NPTF
  • PSI: 2500
  • Push lbs.: 7,584
  • Pull lbs.: 5,369
  • Recommended operating temperature range: -30 to 105°C (-22 to 221°F)
  • For the seal kit use ASC # 117380

We carry plenty of hydraulic cylinders and other repair kits, clevis rods, hydraulic parts and pieces.
