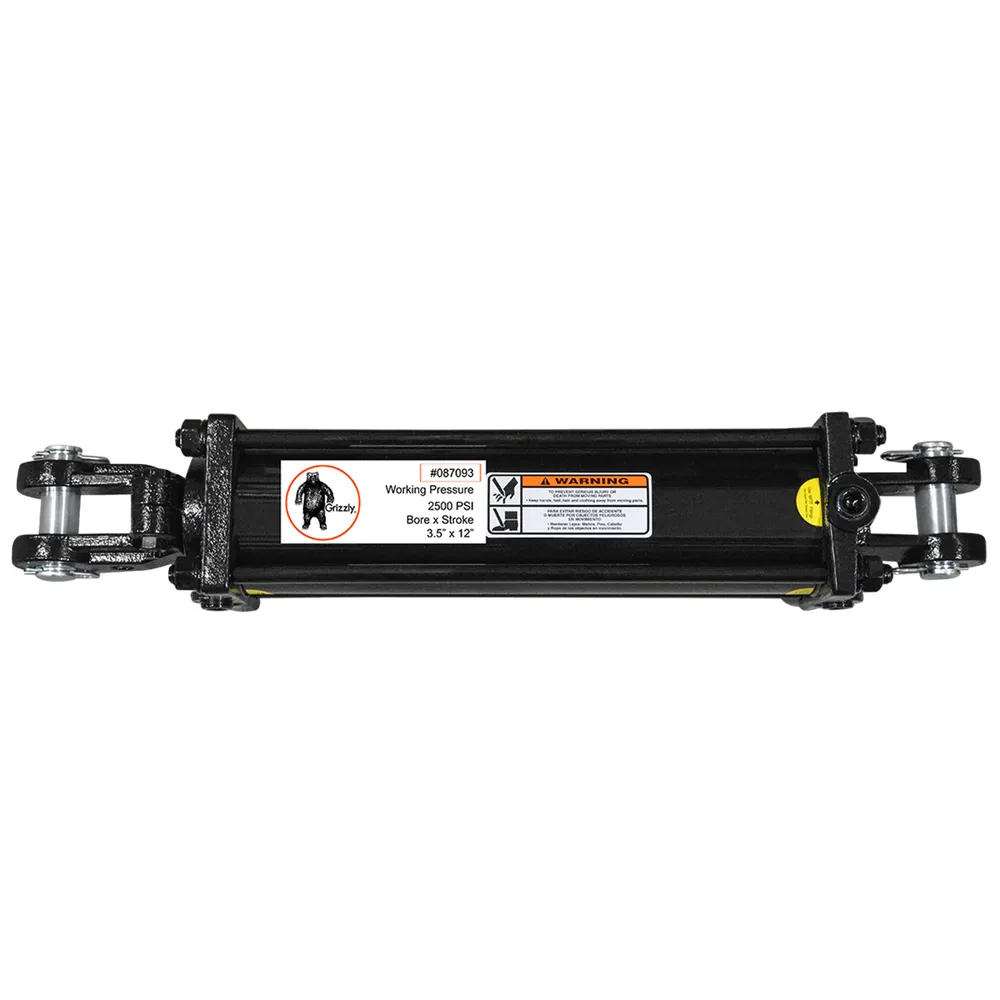

Grizzly® Hydraulic Cylinder 3-1/2 x 12

Grizzly® Hydraulic Cylinder 3-1/2 x 12

Item #87093A
Write a Review
Use this Grizzly® hydraulic cylinder for agricultural applications with a working pressure of 2500 PSI. Designed for high quality performance, this cylinder has a 3-1/2 in. bore and an 12 in. stroke with a retracted length of 22-1/4 in.
100% Satisfaction Guaranteed
Product Overview

Replace hydraulic cylinders to keep your equipment running. This 3-1/2" x 12" cylinder has a rod diameter of 1-1/4" and is constructed of high strength steel and includes tie rods to prevent high pressure failure.

Specifications:

  • Grizzly® Brand
  • Bore: 3-1/2"
  • Stroke: 12"
  • Rod Diameter: 1-1/4"
  • Retracted Length: 22-1/4"
  • Extended Length: 34-1/4"
  • Pin Diameter: 1"
  • Port Size: 1/2" NPTF
  • PSI: 2500
  • Push lbs.: 24,053
  • Pull lbs.: 20,985
  • Recommended operating temperature range: -30 to 105°C (-22 to 221°F)
  • For the seal kit use ASC # 117383

We carry plenty of hydraulic cylinders and other repair kits, clevis rods, hydraulic parts and pieces.
