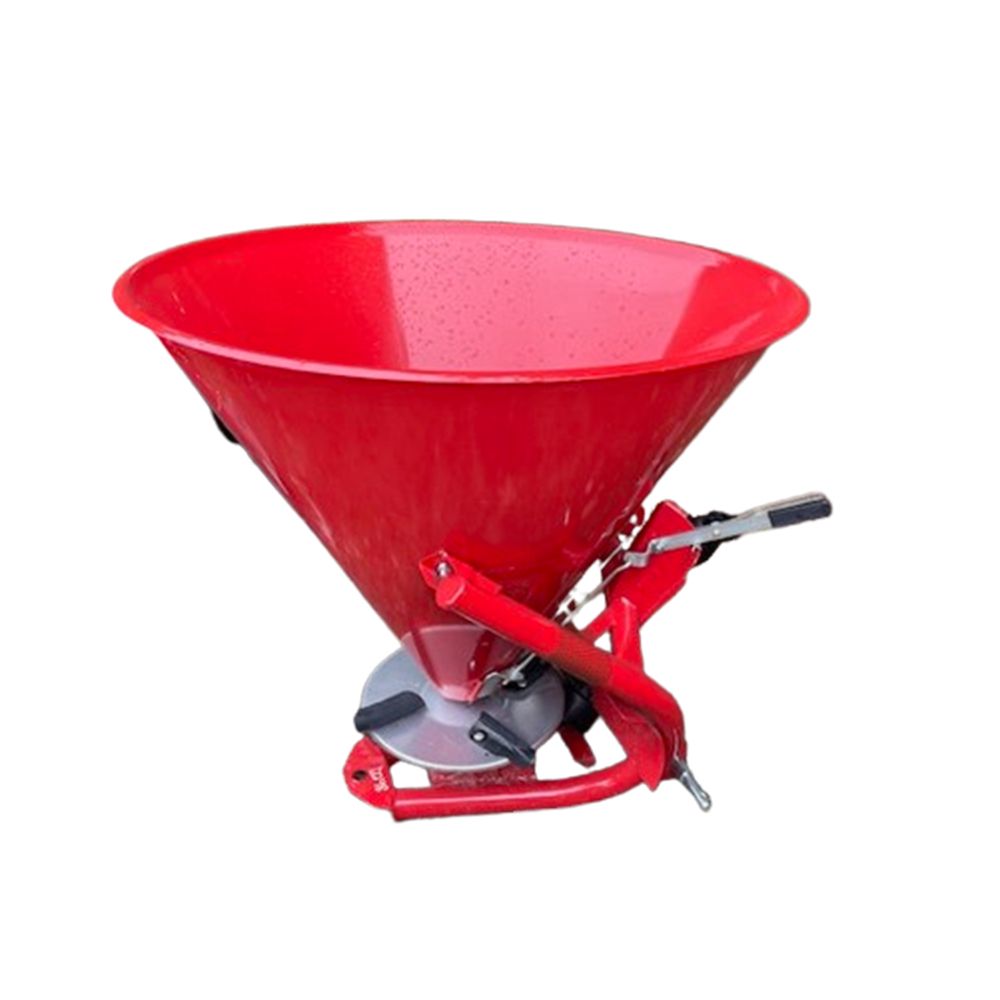

COSMO Fertilizer Spreader, P250
Item #12244
The COSMO fertilizer spreader, Model P 250, is designed and constructed to allow the distribution of fertilizer and seeds in the field. The 3-point spreader has a manual adjusting lever to allow a spreading width from 39 to 46 feet for granular material and 20 to 23 feet for crystalline material. Designed for resistance to damage and corrosion, the steel hopper is epoxy coated.
Product Overview
The COSMO P250 fertilizer and seed spreader is the perfect spreader for the even distribution of granular and crystalline fertilizer. Constructed of steel, the 672 lb capacity hopper has an agitator included. Capacities may vary depending on the product being used.The manual adjusting regulating lever allows for a spreading width of 39 to 46 feet for granular material and a spreading with of 20 to 23 feet for crystalline material. Based on the specific weights of fertilizers used, the distributor vanes on the stainless steel spreading disc can be adjusted for desired distribution.
Connecting with a 3-point hitch, the fertilizer spreaders are driven by a PTO shaft that is included. The hardy steel welded frame is given a coating system that consists of an epoxy primer and polyurethane waterborne paint. This provides excellent protection against UV rays and weathering.
The absorbed power at 540 RPM is 6 HP. The gear box ratio is 1:1 and is internally lubricated in an oil bath for a longer life.
- Specifications:
- Model P 250
- 672 lb metal hopper capacity
- 38 inch diameter across the top of the tub
- 39 to 46 feet granular spreading width
- 20 to 26 feet crystalline spreading width
- Transmission ratio 1:1
- 540 RPM required
- Manual opening system
- 3-point hitch, category 1
- Epoxy primer and polyurethane coated
- Weight: 123 lbs.
- Coating protects against UV and weathering
- PTO shaft and agitator included
- 2 Lateral discharge exits with galvanized shutters
- Reversible lower hitch pins
- For Replacement PTO shaft, use ASC #31963
- Use ASC # 12268 for replacement agitator
Product Downloads
Featured Review
Spreader Model 250, w/ steel hopper
I purchased a P250 in 2005 in order to spread lime & fertilizer on food plots. I still use it on food plots, but expanded to commercial soybeans in 2006. After 10 years of use, this product continues to operate as it did when new. I follow a simple maintenance process that includes (1)a thorough hose down after each use, (2) storage under shelter, (3) occasional grease to the single fitting, (4) annual greasing of the PTO shaft ends, and (5)a spray down at the end of the season with a lubricating spray (MPL from Advance Auto). Bottom line: you can get years of service from these spreaders with basic maintenance. — Chuck Moltz - small farmer, food plot growth & maintenance from VA
