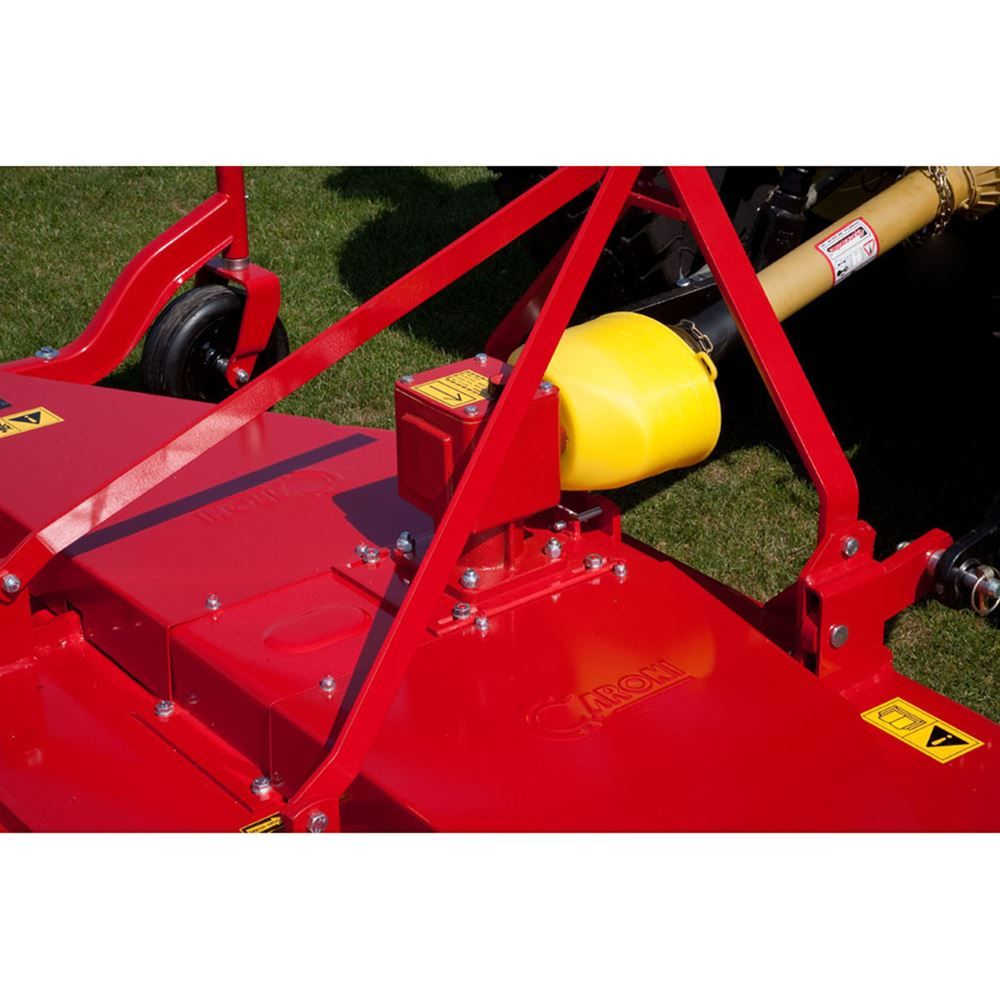

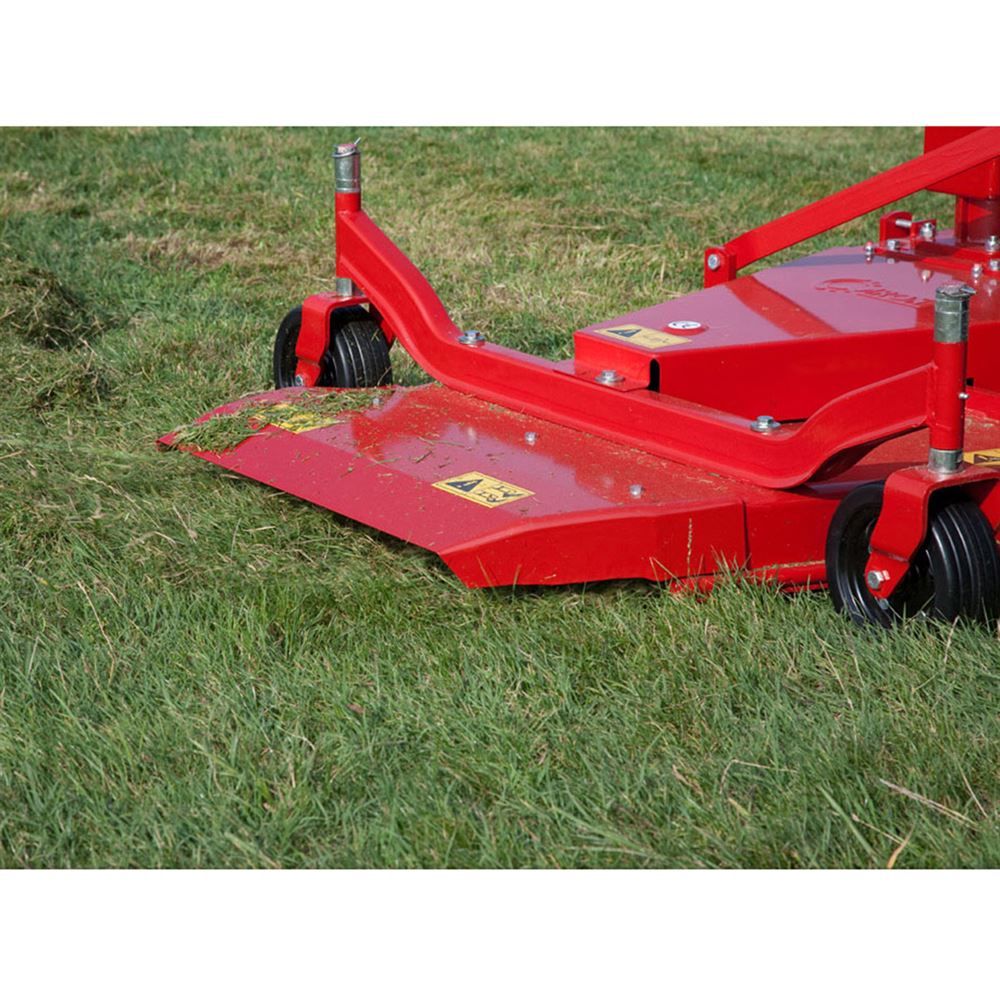

48'' Estate Mower Side Discharge

TC480NSLD - 48" Caroni Estate Side Discharge Mower. The versatility, simplicity and safety are the three main features of the TC rear mower. It is designed and produced with the most up-to-date technologies and the most advanced construction systems, it is ideal for use with tractors ranging between 12 and 20 HP. The hitch is a category 0, and the PTO speed is 540 RPM. This mower has 3 blades, with a blade speed of 3250 RPM and a cutting width of 48" and can be used for any type of grassy area from fields to golf courses, parks to motorway grass verges, and lawns to sports grounds. Four extra-large wheels always ensure a precise cut, which may range from 1" to 4". All models are based on a support chassis consisting of a single cold-drawn block. Toughness and compactness are just two more features that apply to this adaptable, easy-to-handle machine. Some other features are its easy-to-adjust cutting height, which can be altered simply by shifting the spacers mounted on the fork shaft, its 3rd anchoring point, which "floats" to allow the machine to follow the contour of the ground, and its easily-regulated belt tension, which simply requires the adjustment of a single screw. The mower has seven easily-accessible greasing points and the thickness of the steel on this mower is 9 gauge.

Specifications:

• Caroni
• Side Discharge Estate Mower
• Part Number: TC480NSLD
• 1 screw adjustment for belt tension
• 366 lbs.
• Standard hitches work on any type of tractor
• Adjustable cutting heights 1" to 4"
• Use for any type of grassy area
• 4 X-large wheels ensure a precise cut
• Cutting width: 48"
• Gearbox HP: 50
• HP rating: 12-20
• Blade speed RPM: 3250
• Number of blades: 3
• Hitch category: 0
• Discharge: Side
• Weight: 366 lbs.
• For Replacement PTO Shaft Grease Fitting, use #35760

Parts Breakdowns:

• 48" Rear Mower - TC480NSLD

Additional Information:

• Caroni Rear & Front Lawnmowers, TC & F Series - Brochure
• Rear Mower TC Series - Specsheet
• For Replacement PTO Shaft, use ASC 54718A or ASC 89798
