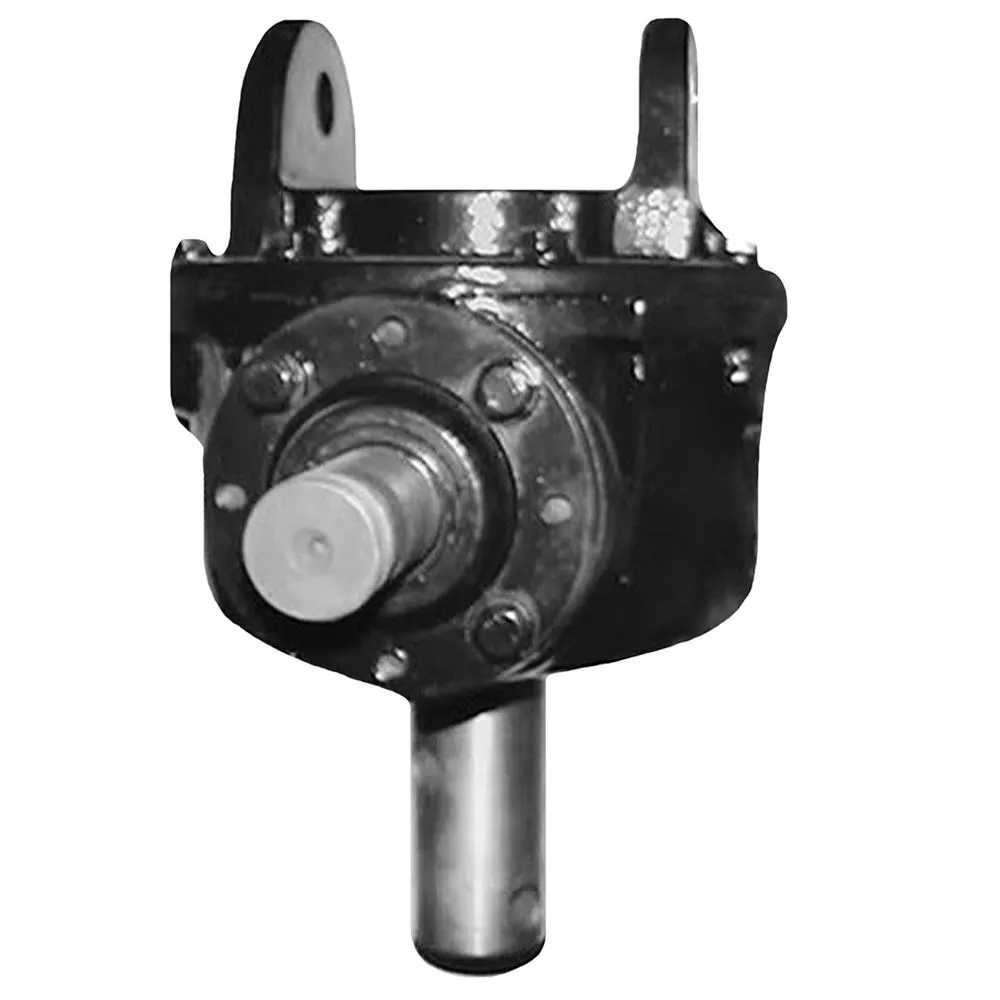

Gearbox RW-260, Smooth 1-1/4 Input Shaft

Gearboxes help a post hole digger's performance by administering a transfer of speed and torque through their internal gear rotation. This gearbox can operate at a horsepower range of 30 to 45. This post hole digger gearbox has a 1-1/4 in. input shaft that is smooth, and a 2-inch smooth output shaft. It has a beveled gear and a gear ratio of 2.92:1. The durable housing is constructed from ductile iron. This gearbox works on very many brand posthole diggers on the market today and from years past.

Specifications

• Gearbox RW-260
• Horsepower: 30-45HP is ideal
• For post hole digger
• Housing construction: Ductile iron
• Distance between mounting ears is 4-5/16 inches
• Distance outside of mounting ears is 5-1/2 inches
• 7/8 inch diameter Top Pin
• Input shaft: 1-1/4 in., smooth outside diameter C 2-1/8 inches long
• Output shaft: 2" Smooth outside diameter X 4-1/4 inches long
• Gear ratio: 2.92:1
• Gear type: Bevel gear
• Uses 90 Weight Gear Oil
• To properly fill with oil, take the 1/4 inch plug out of the rear of the gearbox and pour oil through top plug until it starts running out of the 1/4 inch plug, then replace plug and tighten snugly.
• Output shaft use ASC # 81092, (discontinued item) check inventory
• Input shaft smooth use ASC # 81094, (discontinued item) check inventory
• Output seal use ASC # 81090, (discontinued item) check inventory
• Input seal use ASC # 81096, (discontinued item) check inventory
