PTO Shaft, Series 4, 32.68 In.

#89800

$83.99 EA

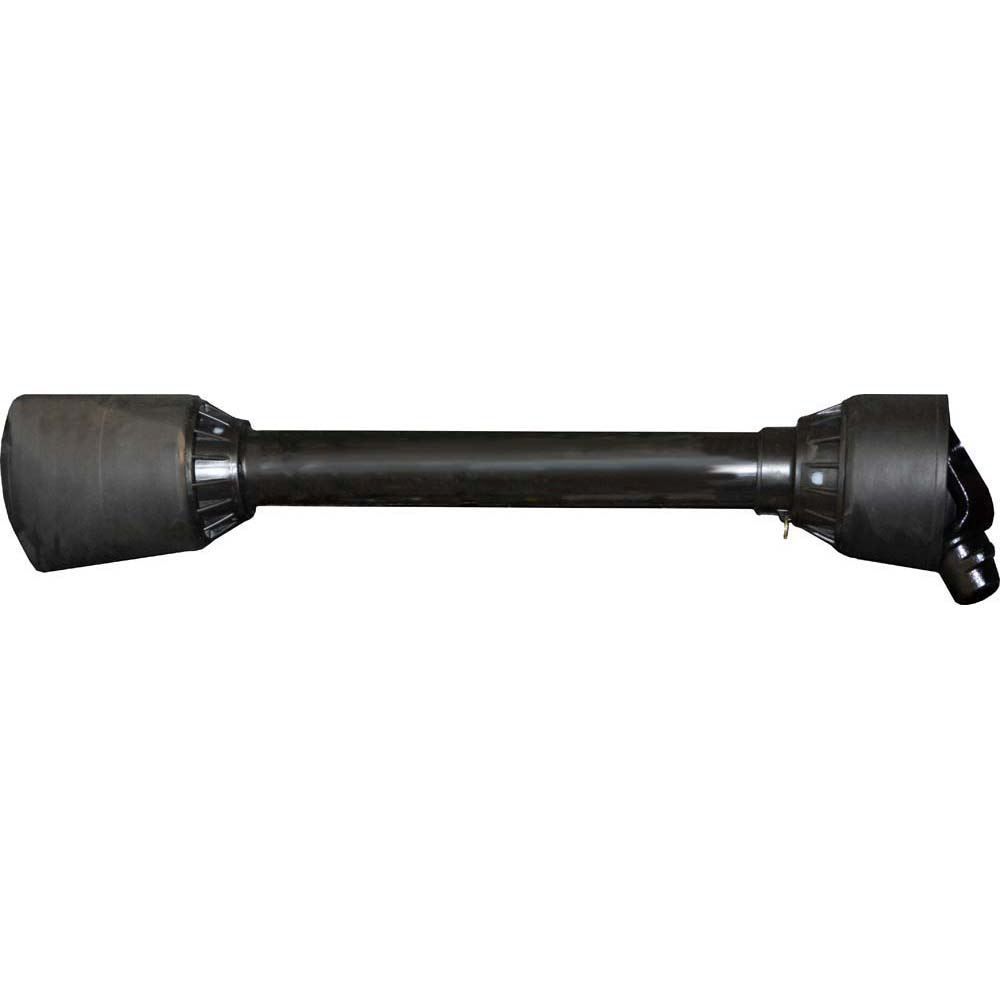

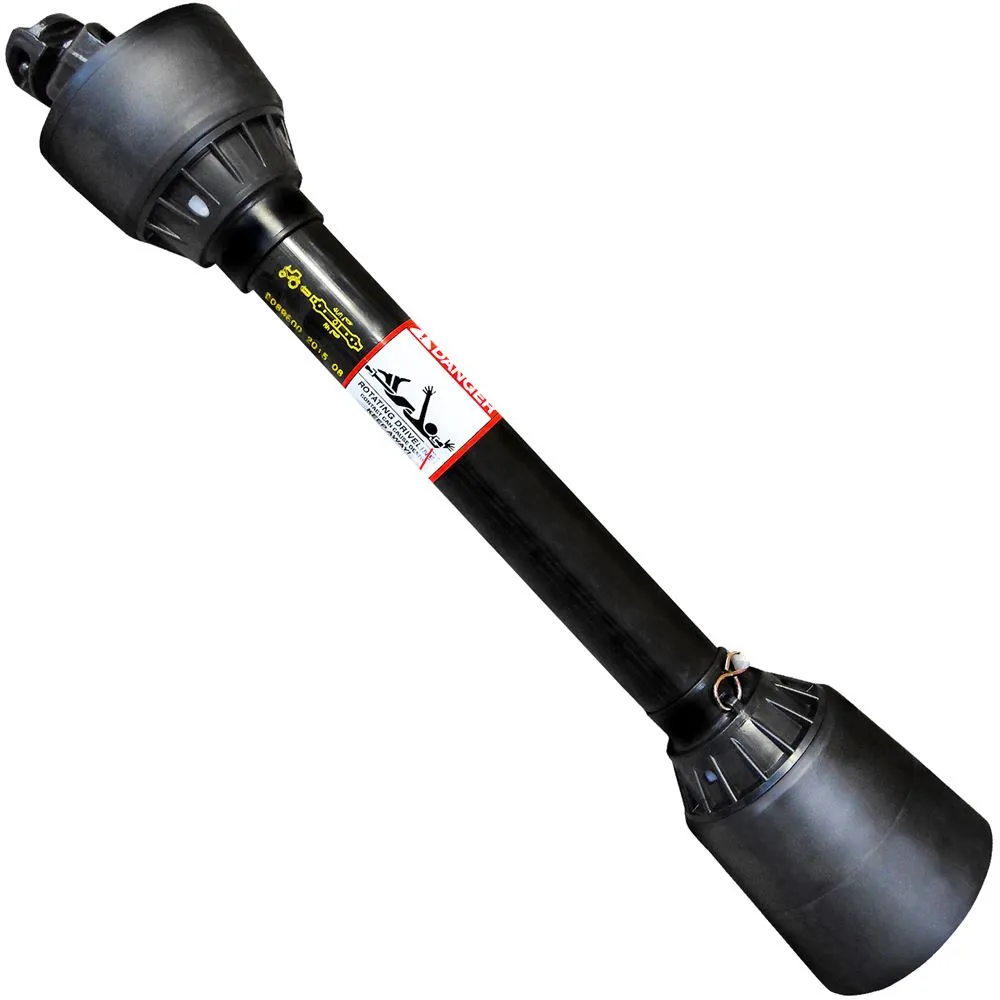

Transfer high amounts of energy between large machinery with a PTO shaft. This series 4 PTO shaft assembly contains dual female ended implements measuring 1-3/8 inches, one round and one splined. This PTO shaft can retract or extend to fit different applications.

-
+
Availability: In Stock -

This series 4 PTO shaft operates in a rotational motion, with a PTO horsepower of 35 at 540 RPM and a horsepower of 54 at 1000 RPM. There is a tractor end and an implement end that both have female ends measuring 1-3/8 in. The tractor end has 6 splines and the implement end is smooth. This PTO shaft has a retracted end measuring 32.68 inches and an extended end measuring 40.65 inches. As an important safety precaution, be sure to shield any rotating parts and do not wear loose accessories, which could become entangled and pulled into the machine.

Specifications
  • PTO Shaft
  • Series 4
  • Extended length: 40.65 in.
  • Retracted length: 32.68 in.
  • Tractor End: 1-3/8 in. 6 spline, female
  • Implement end: 1-3/8 in. female smooth end
  • 35 HP at 540 RPM
  • 54 HP at 1000 RPM
  • Series 4 cross kit compatibility: 27 mm diameter x 74.6 mm width
  • Shield all rotating parts for safety
