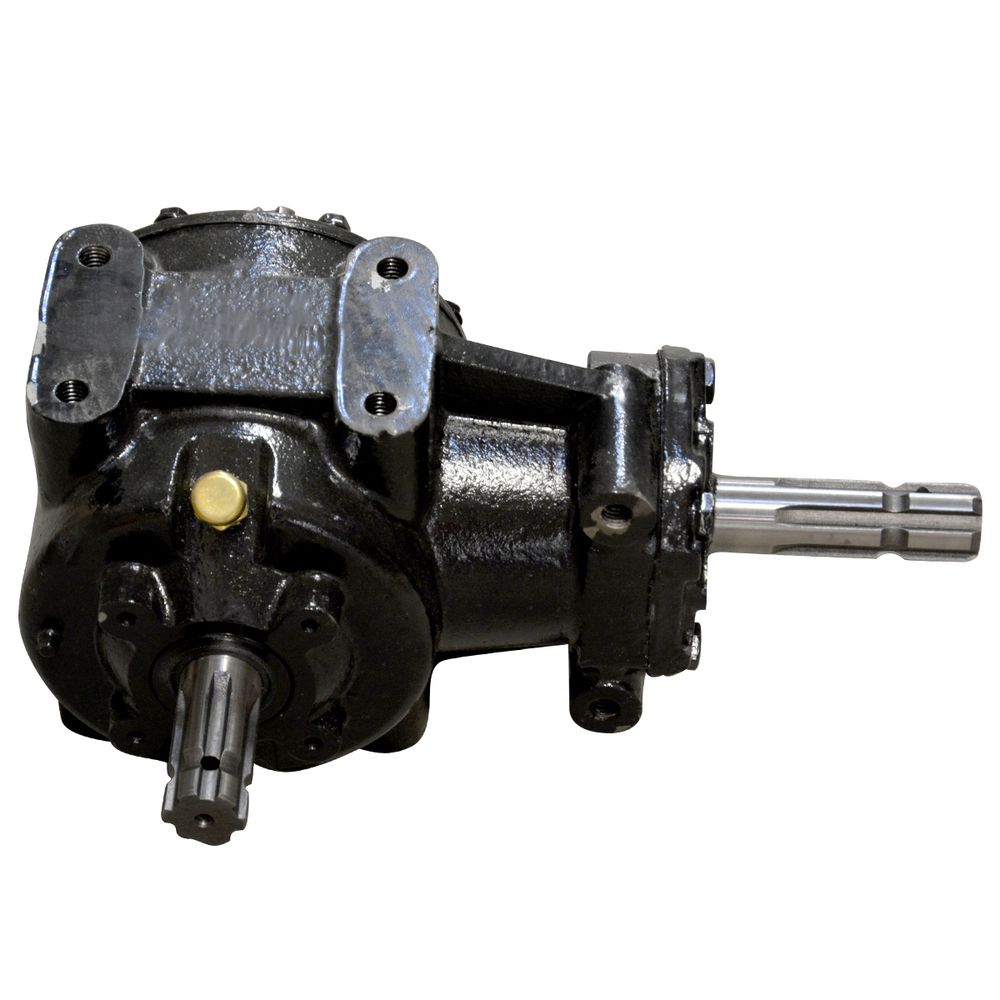

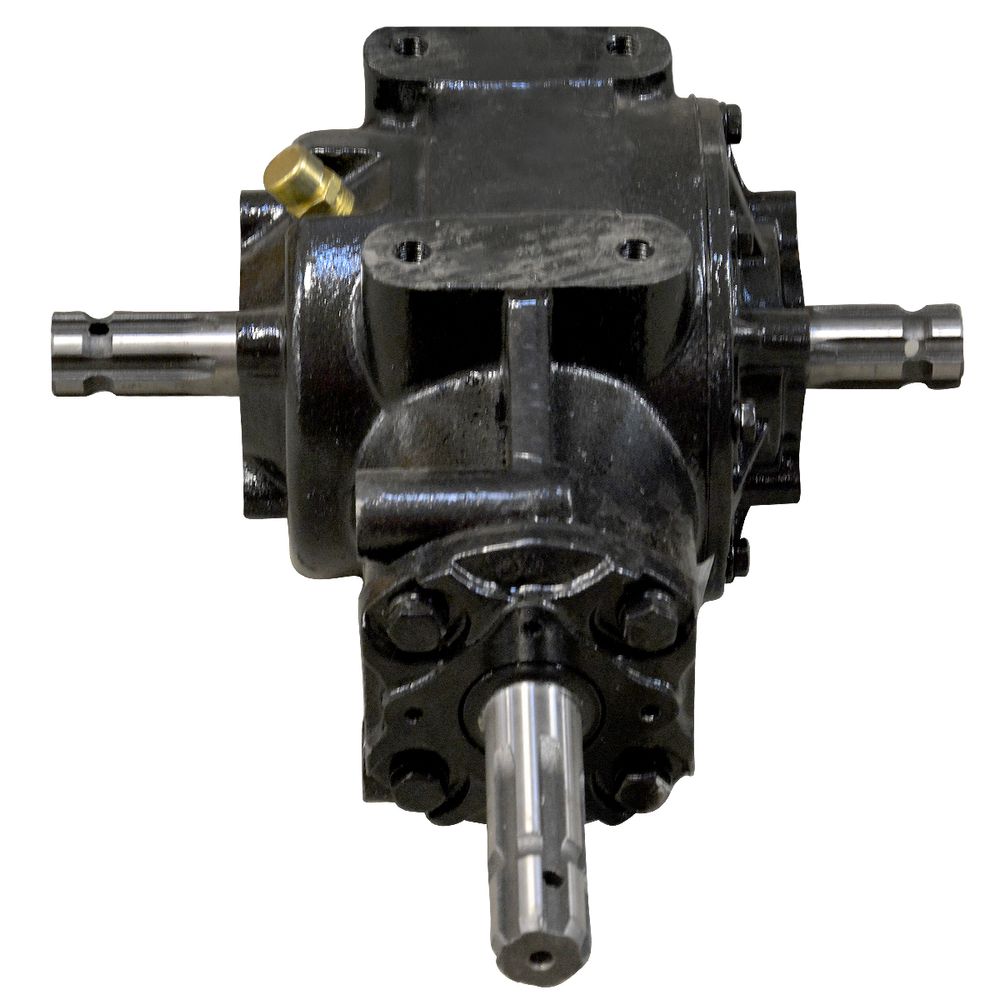

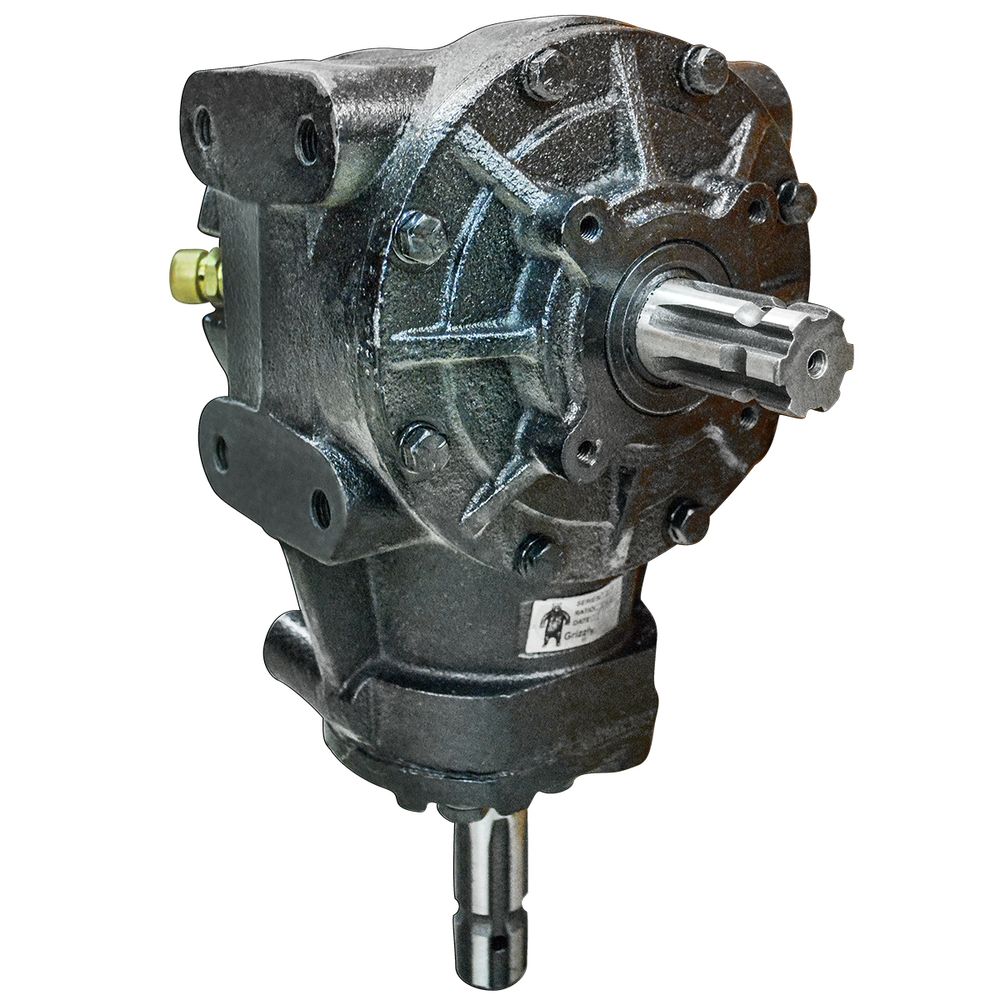

Grizzly® Gearbox 1-3/8" 6 Splined; Black Shaft 1:1.21 RW61T

Gearboxes work to administer a transfer of speed and torque through their internal gear rotation, helping the overall performance of your rotary cutter. This Grizzly® gearbox operates at 100 HP. The housing is constructed from durable ductile iron and both the input and output shaft measures 1-3/8" 6 splined. It has a beveled type of gear, with the gear ratio measuring 1:1.21. Designed for use with 8 ft. , and 10 ft. dual spindle rotary cutters, this rotary cutter gearbox has a mounting pattern of: (4) 5/8" holes-6 across x 3-1/4" side by side pattern for installment.

Specifications

• Grizzly® brand gearbox RW61T
• Replaces Kodiak #KDK03-0016
• Max RPM 540
• For 8 ft., and 10 ft. dual spindle rotary cutters
• Housing construction: Ductile Iron
• Input shaft: 1-3/8" Splined
• Output shaft: 1-3/8" Splined
• Gear ratio: 1:1.21
• Replaces the center Gear Box on a Kodiak and other brands 10' Heavy Duty Mower # 36225
• For replacement Input Seal, use #89761
• For replacement Output Seal, use #89758

Not the gearbox you were looking for check out other Grizzly® Gearboxes we carry.
