Grizzly® Hydraulic Cylinder 2 x 4
Grizzly® hydraulic cylinders are ideal for agricultural applications. With a working pressure of 2500 PSI, this hydraulic cylinder is constructed for high quality performance. With a 2 in. bore and a 6 in. stroke, this cylinder has a retracted length of 16-1/4 in.
Availability:
#88440
Product Overview

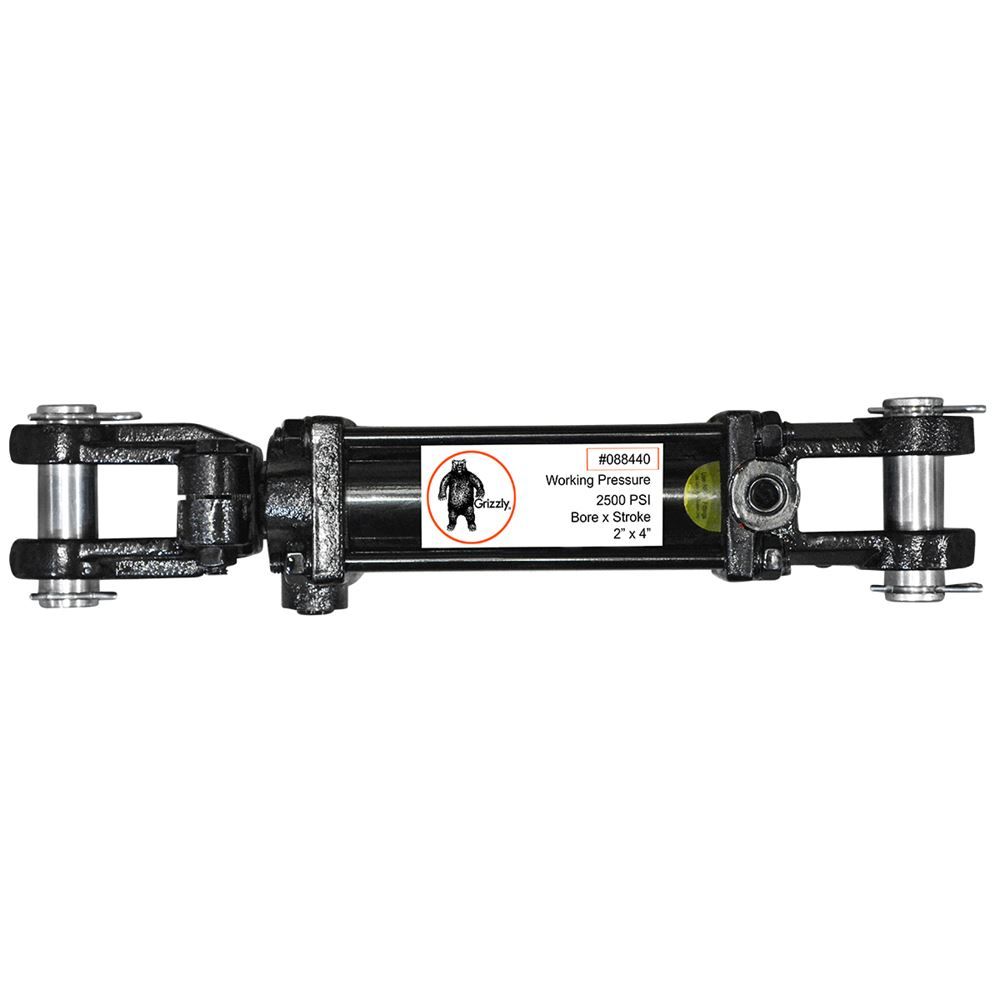

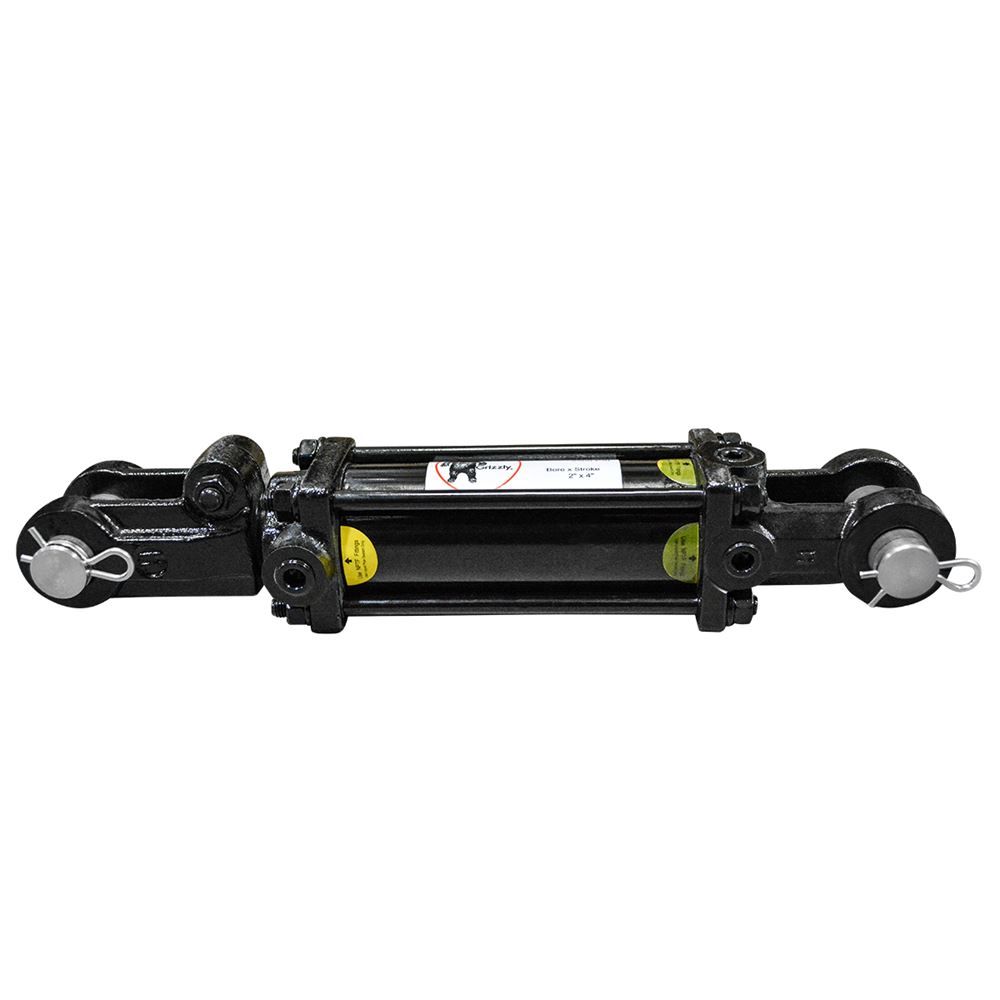

This Grizzly® hydraulic cylinder has a 2 inch bore and a 4 stroke with a retraced length of 14-1/4 inches and an extended length of 18-1/4 inches. Grizzly cylinders are contructed from high strength steel and zinc plated for the tough conditions on the job or farm.
- Specifications:
- Grizzly® Brand
- Bore: 2"
- Stroke: 4"
- Rod Diameter: 1-1/8"
- Retracted Length: 14-1/4"
- Extended Length: 18-1/4"
- Pin Diameter: 1"
- Port Size: 3/8" NPTF
- PSI: 2500
- Recommended operating temperature range: -30 to 105°C (-22 to 221°F)
We carry plenty of hydraulic cylinders and other repair kits, clevis rods, hydraulic parts and pieces.
