Agmate S6CVCL-73 GRW-CV6 (73 in.,ol) 1-3/8 in.,-6 Spl x 1-3/8 in., -6- Spline
GRW-CV6 (73 in.,OL) 1-3/8 in.,-6 SPL x 1-3/8 in., - 6 Spline

GRW-CV6 (73 in.,OL) 1-3/8 in.,-6 SPL x 1-3/8 in., - 6 Spline

Item #102256
Write a Review

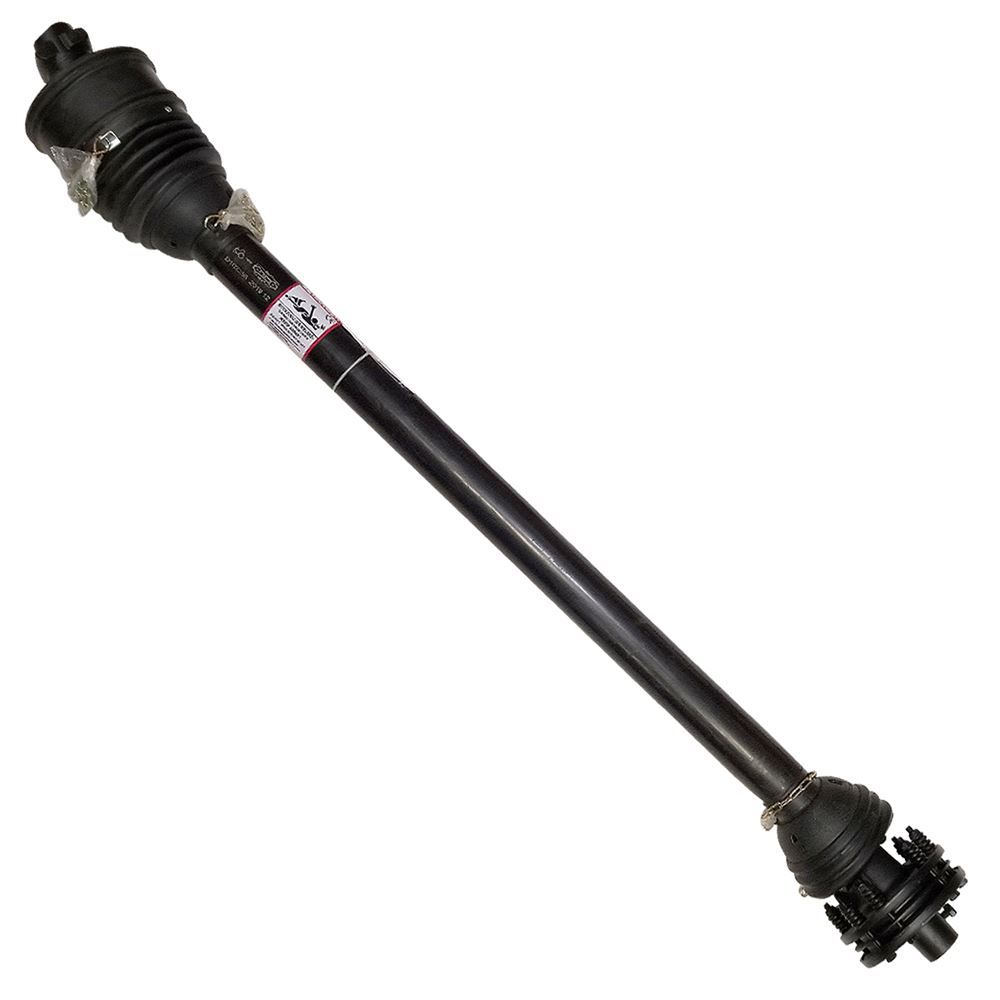

Commonly used with rotary mowers, this PTO shaft by Agmate® is a series 6. It can operate with a 62 HP engine at 540 RPM and a 98 HP engine at 1000 RPM.
Due to product size and/or weight, this product ships via Motor Freight Truck only. Liftgate service may not be available. Please be prepared to remove large items from the truck.
100% Satisfaction Guaranteed
Product Overview

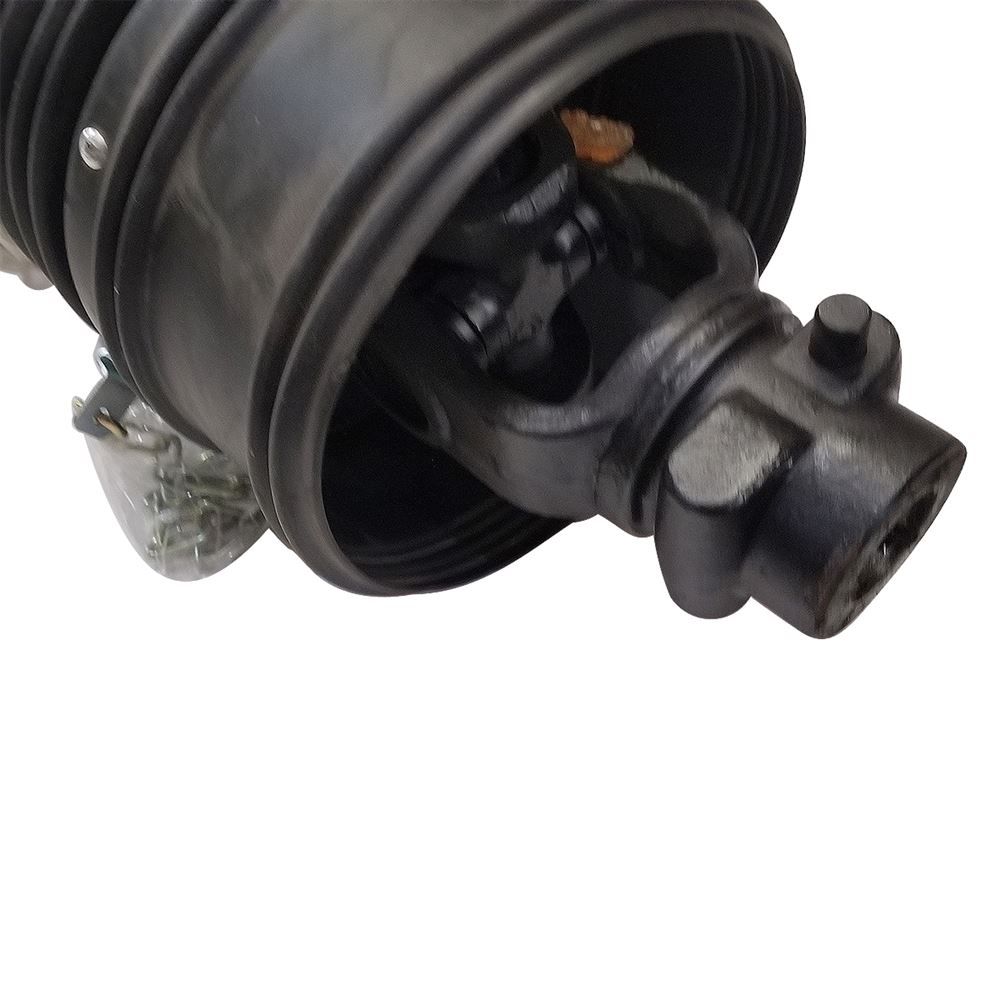

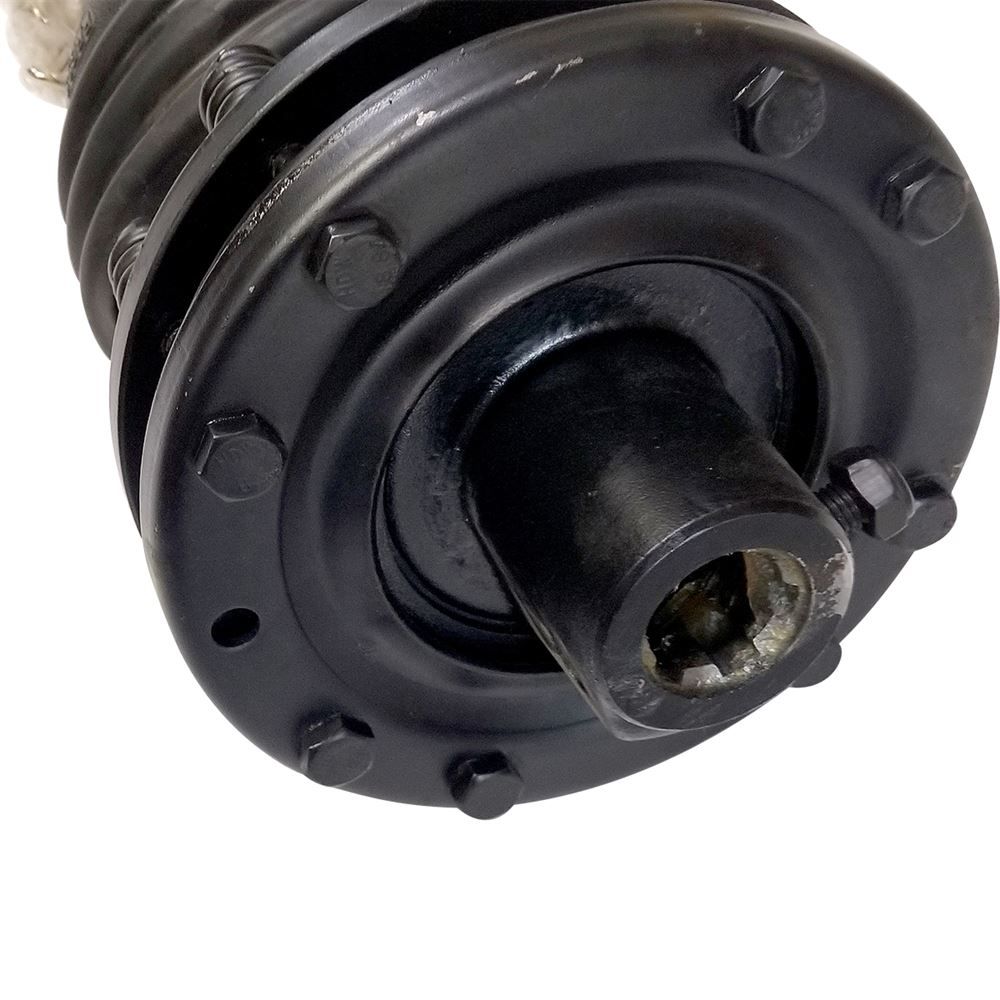

This series 6 PTO shaft features a 1-3/8 inch 6-spline CV tractor end yoke and a 1-3/8 inch 6-spline FD2 clutch on the implement end. It is compatible for use with rotary mowers, and the FD2 clutch attaches with one bolt that fits a groove on input shaft of rotary mower.

Specifications

  • Agmate® PTO Shaft
  • Part Number: S6CVCL-73
  • Series 6
  • 1-3/8 inch 6-spline CV tractor end yoke and a 1-3/8 inch 6-spline FD2 clutch on the implement end
  • FD2 clutch
  • Collapsed length: 73 in.
  • Extended length: 94.9 in.
  • 62 HP at 540 RPM
  • 98 HP at 1000 RPM
  • 80 degree CV 1-38 in. x 6 spline
  • FD2 clutch attaches with one bolt that fits a groove on input shaft of rotary mower
Shop More

Shipping & Returns

Shipping & Return Policy
Product Downloads
May We Suggest
PTO Shaft Series 6, 1-3/4" x 20 Spline image PTO Shaft Series 6, 1-3/4" 20 Spline x 1-3/4" 20 Spline
Item # 90649
$239.99 EA
See Similar
Pressure Relief Plug for RW Gearboxes image Pressure Relief Plug for RW Gearboxes
Item # 89762
$4.99 EA
See Similar
seal-input-shaft-for-rw300 image Input Shaft Seal 35mm x 54mm x 11mm
Item # 89756
$2.99 EA
See Similar

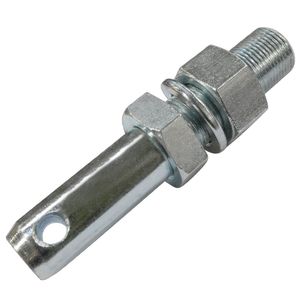

Lift Arm Pin Category 2 image Lift Arm Pin Category 2, Adjustable
